Status Center

PC17275-UN-13AUG13

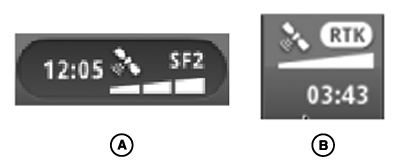

A - 10 inch Display Status Center

B - 7 inch Display Status Center

Status Center highlights important information for display functions, such as GPS signal strength and notifications. It is located in title bar on 10 inch displays, and in lower left corner on 7 inch displays.

Select Status Center to display additional information in a drop down window. The expanded Status Center provides quick access to notifications and settings.

NOTE: Date and Time and Data Storage are always displayed in Status Center.

Additional information is displayed depending on machine configuration and notifications.
