Calibrations

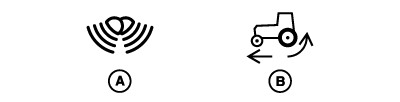

PC15325-UN-01JUL13

A - Radar Calibration

B - Wheel Slip Calibration

Use this application to perform wheel slip calibration and radar calibration. For a tractor, perform wheel slip calibration and radar calibration within this application.

Radar Calibration (A)

A radar device needs to be calibrated when it is first installed on the machine or there is a difference between radar speed and actual ground speed when operating unloaded on a hard surface. Currently, the system supports John Deere dual beam radars.

NOTE: In windy conditions, moving parts such as leaves, dust, or gravel can cause inaccurate radar speed.

Wheel Slip Calibration (B)

Calibrate wheel slip if there is a mismatch between radar speed and wheel speed when operating unloaded on a hard surface. For more information, see Machine Monitor .

Perform calibration while driving with an unloaded machine on a hard, dry, clean, and level surface.

NOTE: Wheel slip calibration is only available on a connected and calibrated radar device.

Make sure radar speed is accurate before performing wheel slip calibration.
