Update Display Software

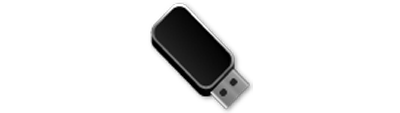

PC15348-UN-11JUL13

USB Drive

Determine Software Versions on Display

Version numbers for all installed software packages are available in Version Information tab in Software Manager.

Download Software Updates

Software updates are available for download from:

https://my.deere.com/software-downloads/software-manager/

The following items are available:

• Software release notes
• Software Manager utility used to download software to USB drive
• Instructions for using Software Manager utility

Once USB drive has latest software, take it to machine to install update.

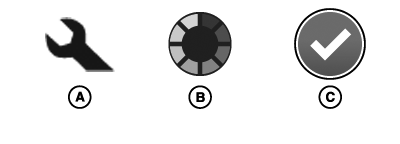

PC15349-UN-11JUL13

A - Install Software Button

B - Progress Indicator

C - Install Successful

Install Software Updates

1. Insert USB drive in to upper USB port next to accessory outlet.

2. When "USB Drive Options" page is displayed, select Install Software button (A). This displays the Installations & Updates tab of Software Manager.

3. Only software packages that are newer than what is currently installed are displayed. All packages are selected by default.

4. Select Install button. If an update does not start, follow the onscreen messages to resolve conflicts.

   CAUTION: During software installation:

   All applications will be shut down.

   No system messages will be displayed.

   To prevent injury, ensure the machine is in Park and maintain electrical power throughout the installation process.

   Do not remove USB drive.

5. A progress indicator (B) displays percentage of each package that has been installed. A green check mark (C) is displayed when package installs successfully.

6. Message displays when software update is finished. Some software packages require a reboot to finish installation. Select Reboot button to restart display.

7. Remove USB drive and take back to computer. Run Software Manager Utility to upload return files.

   NOTE: Return files contain software version information and are used to assist dealers with supporting display and machine.

Troubleshooting

When a software package fails to install, system rolls back all software to version before update started.

Record error message if software update fails. Remove files from USB drive, and reload software update to USB drive. Repeat software installation process.

If software update continues to fail, contact a John Deere dealer.
