Adjust the Steering Wheel

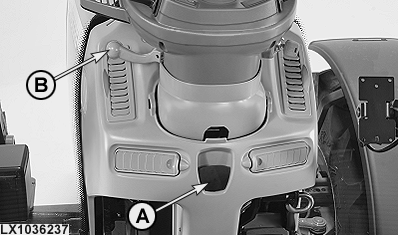

LX1036237-UN-24AUG05

A - Lever for Steering Wheel Tilt

B - Lever for Steering Wheel Height

CAUTION: Adjust the steering wheel only when the tractor is stationary.

To adjust the tilt, press lever (A), move steering wheel to desired position, and release lever.

If only the lever is pulled, the steering wheel will rise all the way up.

To adjust the height, pull lever (B) to the back. After the adjustment, push the lever forward again.
