Fuses, Access to

LX1045629
LX1045629-UN-16FEB11

Fuse Box in Footwell (LCS)

LX1053354
LX1053354-UN-10JAN12

Fuse Box behind Access Step (PLB) Version I

LX216774
LX216774-UN-19AUG14

Fuse Box behind Access Step (PLB) Version II

LX1045698
LX1045698-UN-22NOV10

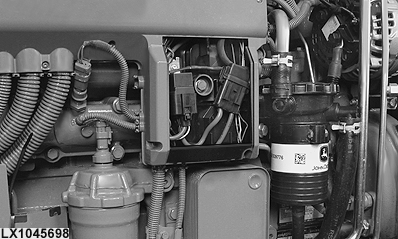

Fuse Box at Engine

The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the footwell of the right console.

The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

The fuse and relay of the electrical starting aid are located on the right side of the engine.
