Engine Air Cleaner - Change Secondary Filter

LX1045680-UN-11NOV10

LX1045681-UN-11NOV10

NOTE: The secondary filter must be changed no later than at every fourth change of the primary filter, or every 4500 hours or 5 years.

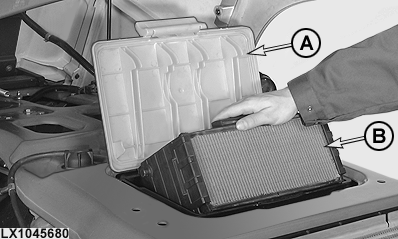

Open flap (A) and remove primary filter (B).

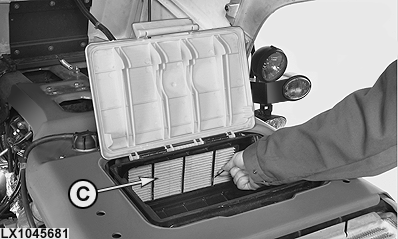

Replace the secondary filter (C) and make sure it is properly seated.

Install the primary filter and close the flap.
