Transmission Serial Number

LX1041513-UN-22AUG06

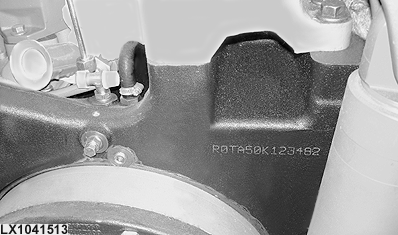

The transmission serial number is located on the left side of the differential housing, above the final drive housing.

It provides details of the transmission ratio of the front-wheel drive axle output (e.g. 1.712) and the transmission ratio of the differential gear pair (e.g. 54/13). This information will be required if a different tire combination is to be used.

NOTE: The string of numbers/letters represents the transmission serial number.

*

*
