Remote Control (Hydraulic Center Link)

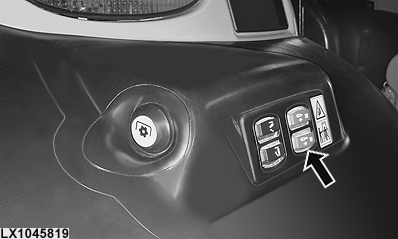

LX1045819-UN-25JAN11

These switches allow the hydraulic center link connected to the 3rd SCV to be operated from outside the cab.

Push upper switch - center link is extended

Push lower switch - center link is retracted
