Center Link

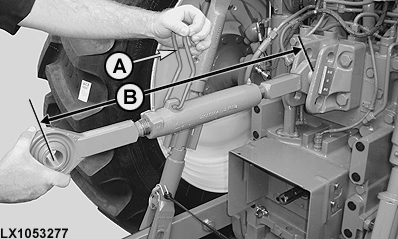

LX1053277-UN-21SEP11

A - Adjusting Handle

B - Length

IMPORTANT: Before using, make sure that a raised implement will not make contact with the tractor. In this case, pay attention to the settings for center link length and maximum lifting height.

Length of center link can be adjusted using adjusting handle (A).

• Minimum length 665 mm (26.2 in.)
• Maximum length 845 mm (33.3 in.)

Do not deviate from the specified dimensions. Grooves in the thread indicate the maximum permitted setting. The threads must not be unscrewed any further out of the receiver. After adjusting, push handle down again over center link. Insert attaching pin through implement mast and center link, and secure.
