Adjustable Front Axle - Checking Toe-in

LX1049289
LX1049289-UN-09JUN10

Adjustable Front Axle Type A shown

LX1049290
LX1049290-UN-09JUN10

Adjustable Front Axle Type A shown

  1. Make sure wheels are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

    CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

  2. First, put marks (+) at axle height on the front (1) of each of the two front wheels.

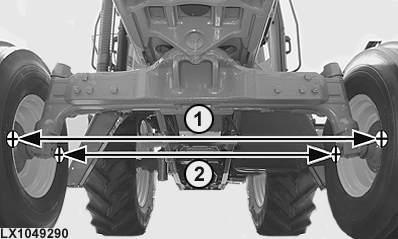

  3. At the front (1), measure distance from the edge of the right rim to the edge of the left rim, and make a note of this measurement.

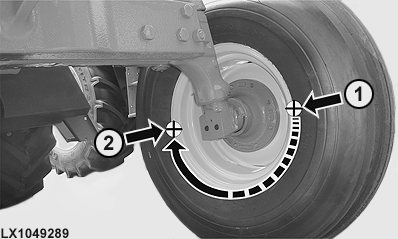

  4. Roll the tractor forward by half the circumference of the front wheel, bringing the (+) mark to the rear (2).

  5. At the rear, measure distance (2) from the right rim flange to the left rim flange, and make a note of the measurement.

Dimension at the front (1) must be 3 to 9 mm (0.12 to 0.35 in.) less than dimension at the rear (2).
