Check the Movement Inhibitor - on AutoPowr™/IVT™ Transmission

LX1041027
LX1041027-UN-08JUN06

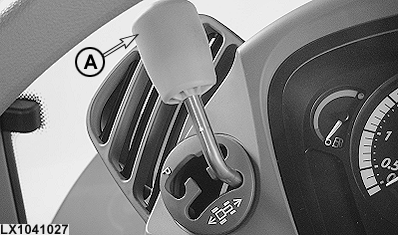

A - Reverse Drive Lever

  1. Move the reverse drive lever (A) to forward or reverse position.

  2. Start the engine and wait 6-7 seconds. The N display must light up.

  3. Press and slowly engage the clutch. The tractor must NOT start to move. If it does, see your John Deere dealer immediately.

OULXA64,0002D6F-19-20150806
