Vehicle Controls with PowrQuad™ PLUS and AutoQuad™ PLUS Transmissions

LX1057001-UN-17APR13

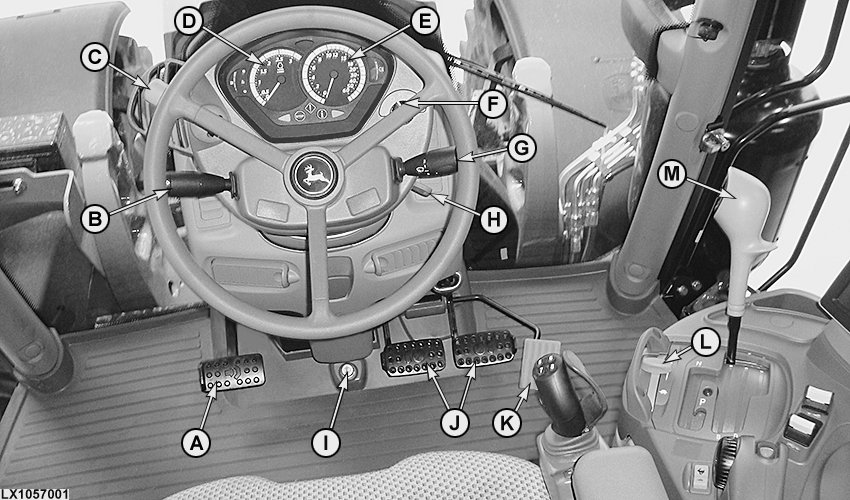

Vehicle Controls with PowrQuad™ PLUS and AutoQuad™ PLUS Transmissions

A - Clutch Pedal

B - Turn Signal Lever/Horn

C - Reverse Drive Lever

D - Tachometer (Engine rpm)

E - Speedometer, km/h or mph

F - Light Switch

G - Wiper Switch

H - Key Switch

I - Differential Lock

J - Left and Right Brake Pedals

K - Accelerator Pedal

L - Hand Throttle

M - Range-Shift Lever with Gear-Shift Switches and Hand Clutch Button
