Lighting System - Beacon Light (Option)

LX1057020-UN-12JUN13

Side Console

LX1057021-UN-12JUN13

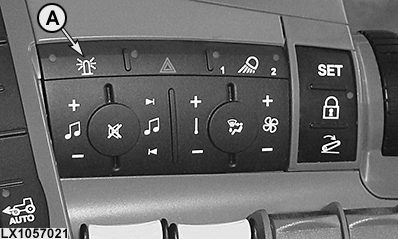

CommandARM™

The beacon light should be used as recommended by local laws (e.g. when driving extremely slowly and when tractor width is excessive).

Press button (A) to switch beacon light on or off.

With the beacon light switched on, the indicator light on button (A) comes on.
