Vehicle Controls of Tractors with AutoPowr™/IVT™ Transmission

LX1057002-UN-03JUL13

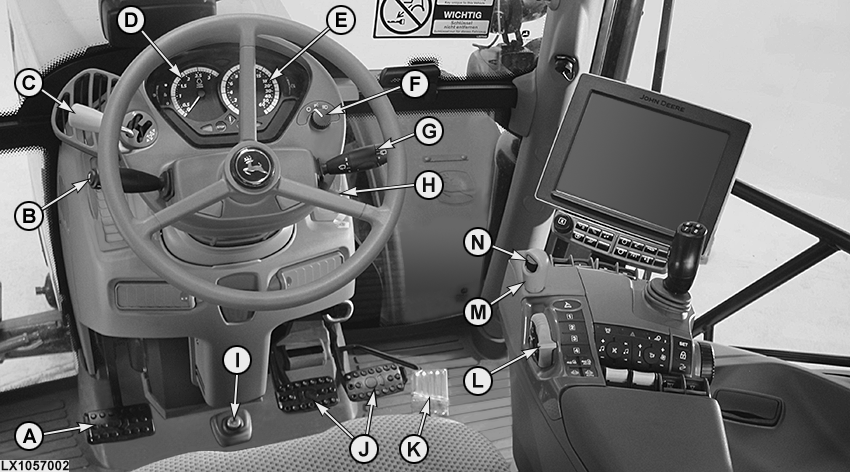

Vehicle Controls with AutoPowr™/IVT™ Transmission

LX1057051-UN-10JUL13

A - Clutch Pedal

B - Turn Signal Lever/Horn

C - Reverse Drive Lever

D - Revolution Counter (rpm)

E - Speedometer (km/h or mph)

F - Light Switch

G - Wiper Switch

H - Key Switch

I - Differential Lock

J - Left and Right Brake Pedals

K - Accelerator Pedal

L - Hand Throttle

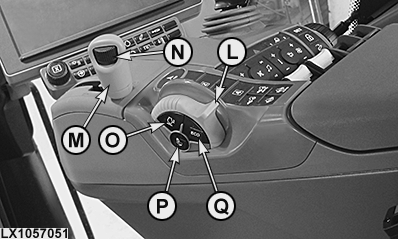

M - Speed Control Lever

N - Speed Wheel

O - Engine Speed Limitation, ON/OFF

P - Accelerator Pedal, Save/Delete Speed

Q - ECO Mode, Minimum Engine Speed ECO, ON/OFF
