Vehicle Controls of Tractors with DirectDrive Transmission

LX1057003-UN-12JUN13

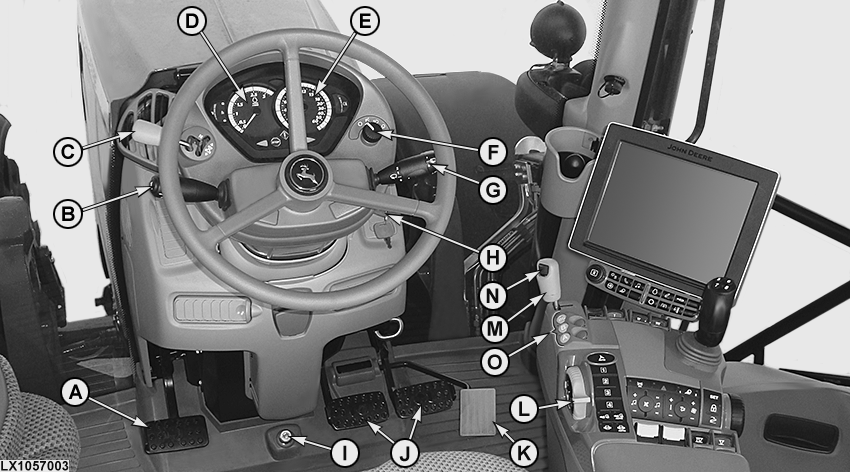

Vehicle Controls with DirectDrive Transmission

LX1057052-UN-14OCT13

A - Clutch Pedal

B - Turn Signal Lever/Horn

C - Reverse Drive Lever

D - Tachometer rpm

E - Speedometer, km/h or mph

F - Light Switch

G - Windshield Wiper Switch

H - Key Switch

I - Differential Lock

J - Left and Right Brake Pedals

K - Accelerator Pedal

L - Hand Throttle

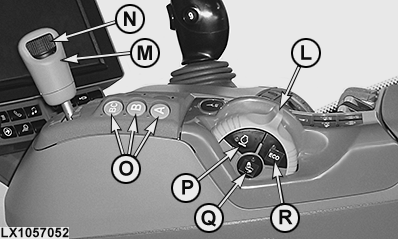

M - Shift Lever

N - Speed Wheel

O - Range Shift Unit

P - FieldCruise™ Cruise Control, ON/OFF

Q - Accelerator Pedal, Save/Delete Speed

R - Economy Mode: Minimum Engine Speed ECO ON or ECO OFF
