Battery Disconnect System (If Equipped)

LX1057077-UN-16JUL13

The battery disconnect system switches the on-board voltage on or off automatically.

On-board voltage can be switched on by:

• opening the door,

• switching on the hazard warning lights, or

• switching on the ignition with the key switch.

NOTE: If the on-board voltage has been switched on and no other electrical consumers have been switched on, the on-board voltage will be disconnected automatically after 5 minutes.

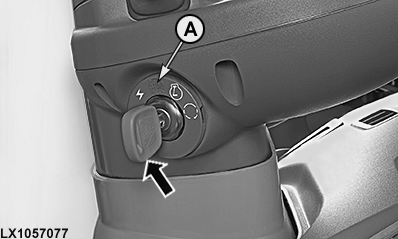

The on-board voltage is switched off automatically after 4 minutes at the latest when switching off the ignition (key switch in position (A)) and the door is closed.

IMPORTANT: When shutting off the engine (key switch in position (A)), wait 4 minutes until disconnecting or removing the battery.

Switching off may be delayed by the following:

• The door has not been closed
  ► switched off automatically after 5 minutes

• Egress light is active
  ► switched off automatically after the duration of lighting has elapsed, 5 minutes max.

• Vehicle lights have not been switched off
  ► automatically switched off after 5 minutes

• Hazard warning lights are on
  ► automatically switched off when battery protection voltage is reached
