Coolant Heater

LX1057081
LX1057081-UN-16JUL13

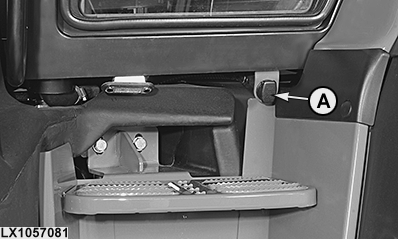

Connect connector (A) of coolant heater to a 230-volt or 110-volt power source.

NOTE: If equipped, the transmission oil preheater and charge pump preheater are also operated by means of connector (A).

At an ambient temperature of -15 °C (5 °F), the heating process takes approx. 2 hours. Extend the heating period if ambient temperature is lower.

IMPORTANT: Observe the electrical voltage of the local power mains.
