Tractors with Cab Suspension

LX1057082-UN-22JAN14

Side Console

LX1057083-UN-01AUG13

CommandCenter™

LX1057490-UN-05DEC14

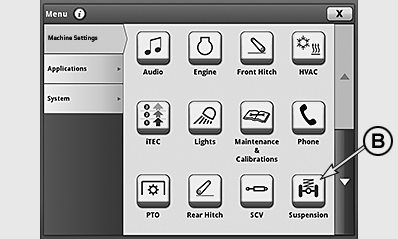

Button for Suspension Systems Page

LX1057087-UN-17JUL13

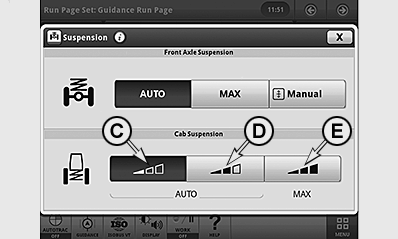

Cab Suspension Button

A - Button for CommandCenter™ Menu

B - Button for Suspension Systems Page

C - Button for “AUTO Soft” Operating Mode

D - Button for “AUTO Medium” Operating Mode

E - Button for “MAX” Operating Mode

NOTE: The CommandCenter™ may be operated via the control panel or touchscreen (depending on equipment).

Actuate button (A) to access the CommandCenter™ menu. Actuate button (B) to access the suspension systems page. On the suspension systems page, three different cab suspension operating modes can be activated at the buttons AUTO Soft (C), AUTO Medium (D) and MAX (E).

NOTE: The active mode is displayed on a dark background.

When the reverse drive lever is moved from position N to position R or F, the level control of the cab suspension system becomes active. The control system moves the cab suspension slightly towards the mid-position. Level control is active at a speed of 0.5 km/h (0.3 mph) and above.

NOTE: Cab suspension must not collide against the mechanical end stops. If this happens, activate a stiffer operating mode.

Auto Soft operating mode (C)

When AUTO Soft is selected, setting of basic damping is 0%. The AUTO Soft mode provides the best comfort for transport journey. Cab suspension moves most in AUTO Soft mode. If less cab movement is desired, select a stiffer setting.

AUTO Medium operating mode (D)

When AUTO Medium is selected, basic damping is set to 50%. Cab suspension is set to medium hardness, and damping cannot fall below 50%.

MAX operating mode (E)

When MAX is selected, the suspension is set to maximum hardness (100% basic damping). This setting is suitable for operating a front loader as it minimizes cab pitching.

The system is set for permanent maximum damping. There is less comfort as compared to the two Auto settings. As ground speed rises above 20 km/h (12.5 mph), the basic damping is adapted to the AUTO Medium. At a speed below 15 km/h (9.5 mph), the basic damping automatically returns to MAX (100%).
