Outside Mirror Switches (If Equipped)

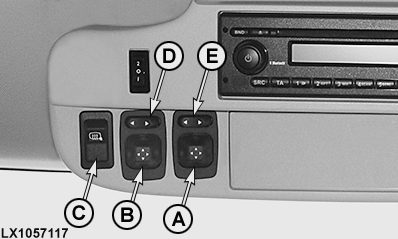

LX1057117-UN-05AUG13

A - Mirror Arm Adjuster

B - Mirror Adjuster

C - Mirror Heater Switch

D - Mirror Adjuster, Left/Right

E - Mirror Arm Adjuster, Left/Right

Select left or right mirror at switch (E), then press right/left side of knob (A) to move the mirror arm in or out.

Select left or right mirror at switch (D), then press top/bottom or right/left side of knob (B) to adjust the mirror.

Switch (C) is for switching the mirror heater on and off.

NOTE: When heater is switched on, the indicator light in the switch comes on. Heating remains switched on until switch (C) is switched off or the engine is shut off at the ignition switch. Heating remains off when the engine is switched on again at the ignition key.
