Heater/Ventilation/Air-Conditioning System and Rear Window Heater

LX1057082-UN-22JAN14

Side Console

LX1057083-UN-01AUG13

CommandCenter™

LX1057488-UN-05DEC14

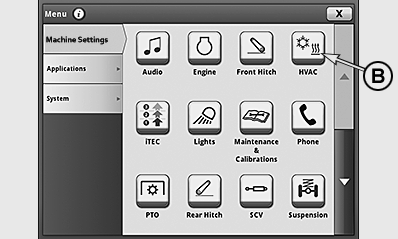

CommandCenter™ Menu

Press (A) — CommandCenter™ menu button to access the CommandCenter™ menu.

Press (B) — Button for HVAC and rear window heater to access the page for HVAC and rear window heater.

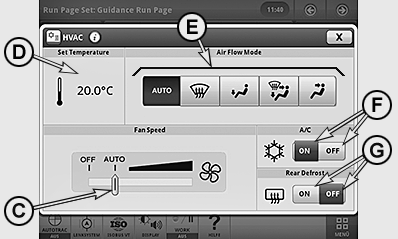

Page for HVAC and Rear Window Heater

LX1057488-UN-05DEC14

LX1057114-UN-05AUG13

LX1057138-UN-05AUG13

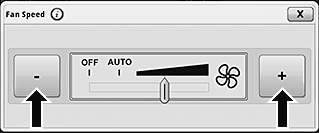

Fan Speed

LX1057139-UN-05AUG13

Temperature Control

(C) — Fan speed

Button (C) is used to set the desired fan speed via the context menu and buttons (+) and (—). After input has been completed, close the context menu.

In Auto mode, fan speed is adjusted automatically to meet the respective requirements.

(D) — Temperature control

Button (D) is used to set the desired temperature via the context menu and buttons (+) and (—). After input has been completed, close the context menu.

(E) — Air flow distribution

The operator can choose between various air flow distribution modes by pressing the various buttons.

(F) — Air-conditioning system

Buttons (F) are used to turn the air-conditioning system on or off.

Turn air-conditioning system on, set the desired temperature and fan speed and set the louvers as desired.

IMPORTANT: To maintain consistently high performance, turn on the air-conditioning system for two or three minutes every month, regardless of weather conditions or season (with engine at low idle). Temperature control should be set for maximum cooling (approx. 16 °C (61 °F).

At ambient temperatures below 4 °C (39 °F), the cab should first be heated (using the heating system) so that the temperature inside the cab is as high as possible.

NOTE: In winter, the air-conditioning system can be operated in conjunction with the heater to remove moisture from the cab.

NOTE: Only operate the air-conditioning system when the fan is on.

(G) — Rear window heater

Buttons (G) are used to switch the rear window heater on or off.

NOTE: The rear window heater can only be operated with the engine running. It is turned off automatically after 10 minutes and each time the engine is shut off (ignition off). When intending to use the rear window heater again, it must be turned on again.

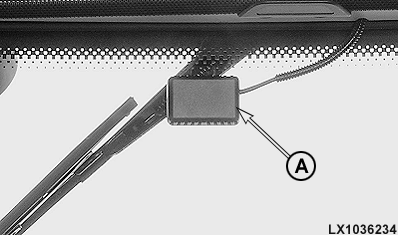

Defog sensor

LX1036234-UN-03JUN05

IMPORTANT: Do not expose defog sensor (A) to large quantities of water (e.g. wash water).

Air flow distribution - description

• (D) — Automatic air flow distribution

LX1057146-UN-05AUG13

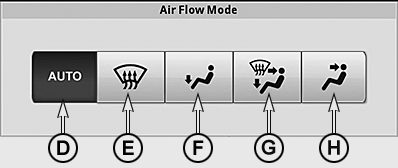

Air Flow Distribution Indicator

LX1057128-UN-01AUG13

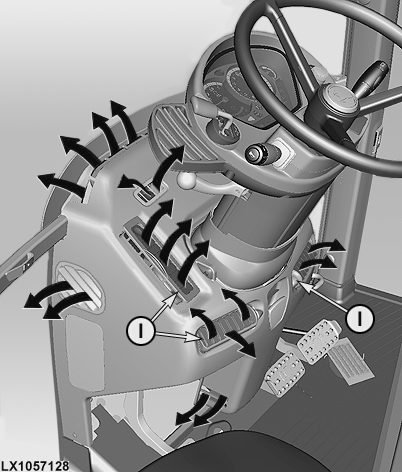

Air Flow and Air Louvers

D - Air Flow Distribution Mode - Automatic

E - Air Flow Distribution Mode - Windshield

F - Air Flow Distribution Mode - Operator

G - Air Flow Distribution Mode - Windows, Operator and Footwell

H - Air Flow Distribution Mode - Footwell

I - Louvers

Select air flow distribution mode (D) and set desired fan speed and temperature. Air distribution is adjusted automatically to meet the requirements.

• (E) — Deicing and removing humidity from windshield

Select air distribution mode (E), then set heater to maximum heating effect and fan to maximum speed.

• (F) — Air flow directed to the footwell

Select air flow distribution mode (F) and set the desired fan speed and temperature.

• (G) — Air flow distributed evenly throughout the operator's cab

Select air flow distribution mode (G) and set desired fan speed and temperature.

• (H) — Air flow directed to the operator

Select air flow distribution mode (H) and set desired fan speed and temperature. The direction and force of the air flow can be further adjusted at louvers (I).
