DirectDrive — Controls

The DirectDrive transmission provides travel speeds in forward travel from 2.6 km/h (1.6 mph) to 40 km/h (25 mph)* or 50 km/h (31 mph)*. In reverse travel, the transmission provides travel speeds from 2.7 km/h (1.68 mph) to 30 km/h (18.6 mph). Maximum speeds may vary slightly due to tire size.

* Depending on version of transmission


Reverse Drive Lever

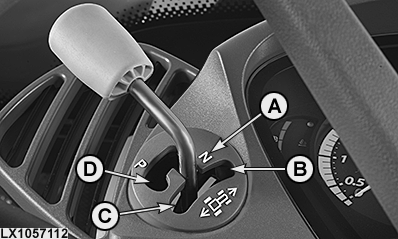

LX1057112
LX1057112-UN-23JUL13

LX1057425
LX1057425-UN-29JUL14

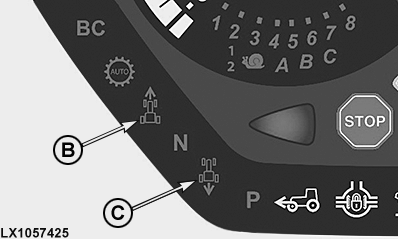

Symbol for Direction of Travel

A — Neutral Position
Disengages park lock with the engine running allowing tractor to roll, but does not transmit power to the wheels. N appears on the instrument panel.

B — Forward Travel
In this position, power is transmitted to the wheels to allow forward travel. The direction of travel is indicated on the instrument panel as symbol (B).

C — Reverse Travel
In this position, power is transmitted to the wheels to allow reverse travel. The direction of travel is indicated on the instrument panel as symbol (C).

D — Park
In this position, park lock is applied to hold the tractor stationary and prevent it from rolling away. P appears on the instrument panel as soon as the park lock is engaged. The park lock may not be engaged until the tractor has come to a standstill. This keeps load on the transmission to a minimum. If the park lock is engaged before the tractor has come to a standstill, an audible warning is sounded and the blue INFO light lights up.

NOTE: Engaging the park lock also activates the trailer brake.

To drive the tractor, move the lever to forward (B) or reverse (C). If the lever is moved from forward or reverse back to neutral position (A), the tractor will coast down until it stops.

IMPORTANT: Only the positions shown may be selected. Manually forced intermediate positions may result in malfunctions.


Range shift unit

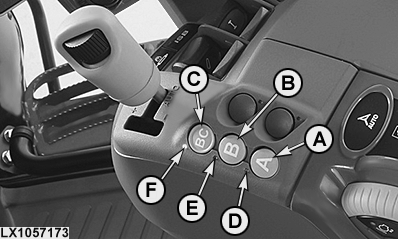

LX1057173
LX1057173-UN-27AUG13

A - Range A Button

B - Range B Button

C - Range BC Button

D - Range A Indicator Light

E - Range B Indicator Light

F - Range BC Indicator Light

The three ranges of the DirectDrive transmission are shifted electrically. Each range has eight gears.

The respective ranges can be selected by pressing buttons (A, B or C). Depending on which range is selected, one of the indicator lights (D, E or F) will glow. The ranges can be changed without operating the clutch.

Each range covers a certain speed range and is designed for certain work:

  • Range A: 2.6 to max. 10.8 km/h (1.6 to 6.7 mph) for primary tillage, secondary tillage (with rear PTO), loader and spraying work
  • Range B: 5.1 to max. 21.5 km/h (3.2 to 13.4 mph) for seeding, mowing, fertilizing, secondary tillage, and transport work in the field
  • Range BC: Combines the travel speeds of Range B (5.1 to 21.5 km/h (3.2 to 13.4 mph)) maximum with those of Range C (13.1 to 42 km/h (8.1 to 26.1 mph)) (with 40 km/h DirectDrive)

    15.6 to 53 km/h (9.7 to 32.9 mph) (with 50 km/h DirectDrive transmission)

    Range BC is recommended for transport work.

NOTE: Travel speeds may differ slightly, depending on the tire size.

When operating the tractor in range BC, the transmission shifts independently between ranges B and C. In Auto mode, the transmission shifts independently into range C when the highest gear in range B has been reached.


Shift lever

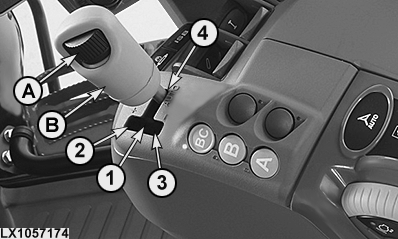

LX1057174
LX1057174-UN-27AUG13

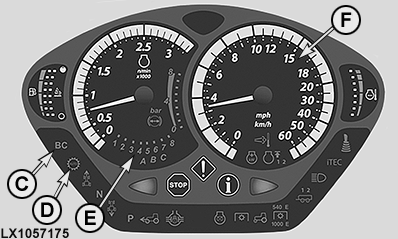

LX1057175
LX1057175-UN-27AUG13

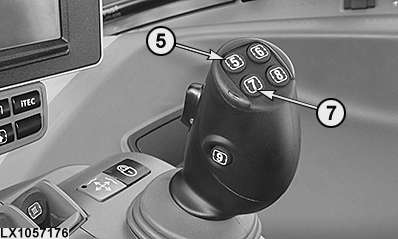

LX1057176
LX1057176-UN-22JAN14

Multi-Function Lever

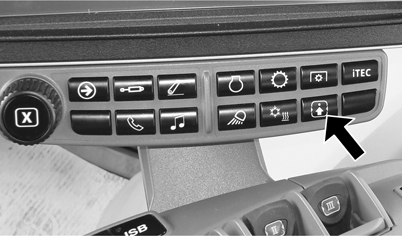

LX1057218
LX1057218-UN-02JUL14

Button for Requesting Current Status of Button Assignment

A - Speed Wheel

B - Shift Lever

C - Range BC Indicator Light

D - Auto Mode Indicator Light

E - Indicator Lights for Ranges and Gears

F - Maximum Speed Indicator Lights

1 - Manual Mode Position

2 - Upshift Position

3 - Downshift Position

4 - Auto Mode Position

5 - Upshift Switch (Default Assignment)

7 - Downshift Switch (Default Assignment)

With shift lever (B), automatic or manual shift mode can be selected.

Automatic mode: Move shift lever (A) to position 4 to select Auto mode. Auto mode indicator light (D) lights up on the instrument panel. In Auto mode, engine speed, range (in range BC only), and gear are commanded automatically to achieve set speed and to manage heavy and light loads.

Speed wheel (A) can be used to set maximum speed*. This speed is maintained automatically with engine at full throttle by using accelerator pedal or hand throttle. Speed wheel (A) does not have a stop and can be infinitely adjusted. It makes a change in relation to the previous setting. If the maximum speed setting is changed with speed wheel (A) while the tractor is moving, the change is always based on the last setting. Any changes are stored in the tractor's electronics. The currently selected maximum speed is indicated by indicator lights (F).

*Separate maximum speeds can be set for ranges A, B and BC.

Manual mode:In Manual mode, eight gears can be selected per range. To select this mode, set the shift lever (B) to position 1. For shifting up, push the shift lever (B) forward from position 1 to position 2. For shifting down, push the shift lever backward from position 1 to position 3. After the shifting process has been completed, the shift lever (B) automatically moves back to position 1 again. On tractors with electrical multi-function lever, gears can be shifted up and down using gear-shift buttons (5) and (7).

CAUTION: Buttons (5) and (7) have variable button functions. Press button (see arrow) to view current button assignment. Misuse may result in accidental death.

Indicator lights (E) on the instrument panel show the range and gear selected by the operator. In addition, indicator light (C) shows if range BC (for transport work) is selected. In range BC, the transmission automatically shifts into range C when the highest gear of range B has been reached.


Accelerator pedal and hand throttle

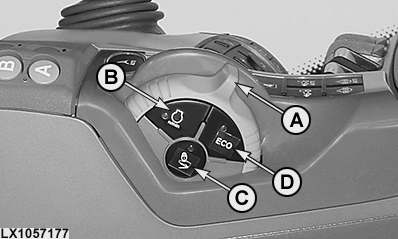

LX1057177
LX1057177-UN-14OCT13

A - Hand Throttle

B - FieldCruise™ Cruise Control, ON/OFF

C - Accelerator Pedal, Save/Delete Speed

D - ECO Mode, Minimum Engine Speed ECO ON or ECO OFF

NOTE: In manual mode, automatic engine speed reduction at low loads is not active.

Speed is controlled via accelerator pedal and hand throttle. The signal used for control is always the signal that commands the higher engine speed.

Engine rpm can be set to a specific speed using the hand throttle.

Button (C) allows the accelerator pedal position to be saved. To save accelerator pedal position, proceed as follows:

  1. Set desired pedal position.
  2. Press button (C), then release.
  3. Release the pedal within two seconds. If a pedal position is stored, the indicator light in button (C) lights up.

NOTE: Pedal position cannot be saved if one of the following applies:

  • Reverse drive lever in park position
  • Reverse drive lever in neutral
  • Clutch pedal pressed

To delete a saved position, do one of the following:

  • Press button (C) again
  • Apply brake
  • Move the reverse drive lever to park position
  • Set the accelerator pedal position to the saved position once again

Once the saved position has been deleted, indicator light in button (C) goes out.

If the accelerator pedal or hand throttle is moved to command a higher engine speed, engine speed increases. When load-dependent engine speed reduction is active, once the set travel speed has been reached, engine speed is adjusted automatically as required.

Button (D) allows the operator to toggle between the minimum engine speeds ECO ON and ECO OFF.

NOTE: Button (D) is active in custom mode only.

If the reverse drive lever is in forward or reverse, the tractor can be accelerated up to the set speed using the accelerator pedal or hand throttle. Travel speed at any particular time depends directly on the position of the accelerator pedal or hand throttle. Engine speed is directly affected by the position of the accelerator pedal only in Manual mode.

Whenever the accelerator or the hand throttle is actuated, the values set in the CommandCenter™ for automatic and for FieldCruise™ (cruise control) are taken into account. This means, for instance, that even at full throttle the value set for FieldCruise™ will not be exceeded. In AUTO mode, the engine turns only as fast as needed, even at full throttle. As long as the accelerator and the hand throttle are actuated at full throttle at the same time, the load dependent cruise control is not active.

FieldCruise™ can be switched on and off directly using button (B).

NOTE: If hand throttle and accelerator pedal are both used at the same time to reach maximum speed, the transmission does NOT shift to C8. If the hand throttle is actuated fully in addition to a fully pressed accelerator pedal (at maximum speed), the transmission shifts back down from C8 to C7.


Brake pedals

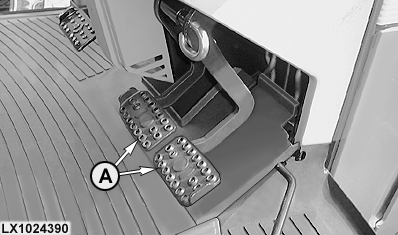

LX1024390
LX1024390-UN-03JUL00

A - Brake Pedals

Braking with AutoClutch function switched on

Braking with AutoClutch function switched off

If both brake pedals are depressed when driving the tractor, the speed will be reduced or the tractor stops. Thanks to the AutoClutch function, there is no need to depress the clutch pedal when braking.

When the brakes are released again, the tractor automatically accelerates up to the speed currently commanded by the hand throttle or accelerator pedal.

Press both brake pedals to reduce speed. To stop, press the clutch pedal at the same time to separate the clutch.

See also “Hydraulic Foot Brakes” and “Emergency Brake System”* in Section 45.

*Not for North America

CAUTION: The AutoClutch function operates only when the brake pedals are coupled together. Actuating a pedal individually (e.g. to steer) does NOT actuate the AutoClutch function.

NOTE: For driving maneuvers using the turn brake (only one brake pedal is actuated), the engine speed should not drop below 900 rpm, because otherwise the AutoClutch function becomes active again.


Clutch pedal

When AutoClutch is engaged, there is no need to depress the clutch pedal to stop the tractor. When both brake pedals are pressed, the AutoClutch function becomes active.

When AutoClutch is switched off, the clutch pedal needs to be pressed to stop the tractor.

OULXA64,0003045-19-20140731
