DirectDrive — Stopping and Parking the Tractor

LX1057538
LX1057538-UN-10JUL12

LX1057196
LX1057196-UN-30AUG13

LX1057197
LX1057197-UN-29AUG13

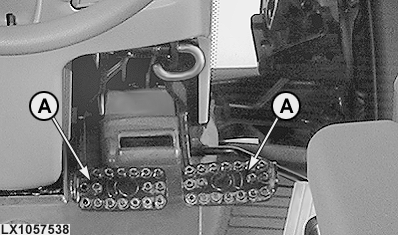

A - Brake Pedals

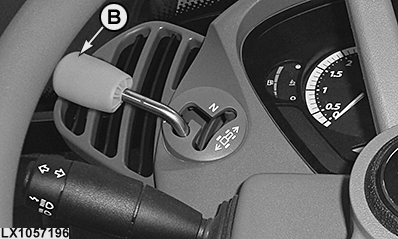

B - Reverse Drive Lever

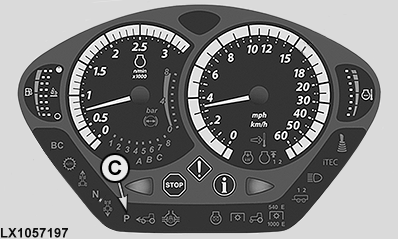

C - Park Lock Indicator Light

CAUTION: Avoid injury due to losing control of tractor. Couple brake pedals (A) together when driving on roads.

  1. Reduce throttle to low engine rpm.

    1. If AutoClutch* is switched off, press both brake pedals and the clutch pedal.

    2. If AutoClutch is switched on, press both brake pedals. There is no need to depress the clutch pedal. The brakes will enable AutoClutch (automatic clutch function).

  3. Bring the tractor to a stop.

  4. Shift reverse drive lever (B) to park position. Indicator light (C) must light up.

  5. Lower implements and shut off the rear PTO.

  6. Shut off engine, and remove ignition key.


Stop tractor with AutoClutch

NOTE: AutoClutch is deactivated if single-wheel braking is applied while engine speed is above approx. 900 rpm. This means: if single-wheel braking is applied e.g. to effect a change of direction, the clutch is not activated unless engine speed is over 900 rpm.

Press both brake pedals. Brakes will activate AutoClutch. When brakes are released, tractor accelerates to preset speed again.

CAUTION: Avoid injury. Braking the tractor at high engine speed will require higher pedal force than braking the tractor at low engine speed.

Avoid injury due to sudden or unexpected acceleration. When brake pedals are released, the tractor will automatically accelerate to the preselected speed.

Using NEUTRAL Position

Transmission neutral position is obtained (with engine running) by shifting reverse drive lever (B) to neutral position. Tractor will roll freely in NEUTRAL position.

Use PARK Position

CAUTION: Before leaving the tractor always move reverse drive lever (B) to park position and wait until indicator light (C) comes on.

Transmission PARK position holds tractor stationary. The tractor will not be braked if the park lock is engaged while driving. However, if the park lock is engaged while driving, an error message will be displayed on the CommandCenter™ display and an acoustic warning signal will sound.

*AutoClutch is an automatic clutch function that interrupts the flow of power between the engine and transmission when the two brake pedals are depressed.
