Attach Three-Point Hitch Mounted and Drawn Implements

LX1057225-UN-05SEP13

LX1057226-UN-05SEP13

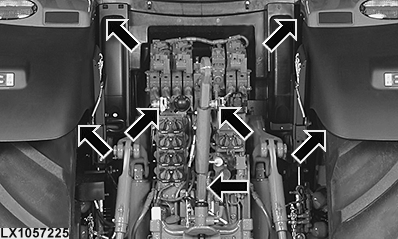

Be sure not to damage exposed parts of cab and tractor components (see arrows) when attaching three-point hitch mounted or drawn implements.

CAUTION: Do not stand between tractor and implement unless the park lock is already engaged.

IMPORTANT: When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab or other tractor components in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

Also comply with instructions under Hydraulic Center Link, where applicable.

If a drawbar is installed, set it in the front, short position. The drawbar can also be swung to the right or left and secured there.

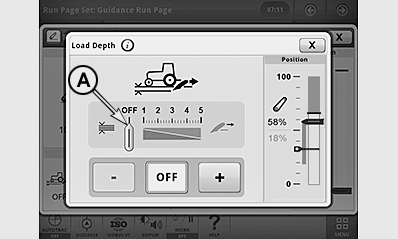

When attaching an implement, first make sure that draft/depth control (A) is set to OFF.

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the stabilizer bars, whether hydraulic or mechanical, must be locked.
