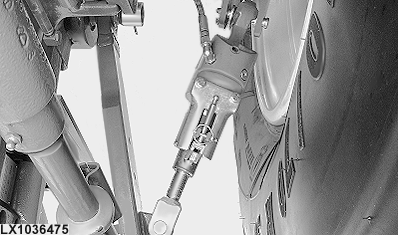

Hydraulic Stabilizer Bars (If Equipped)

LX1036475-UN-23JAN06

LX1057220-UN-22JAN14
Side Console

LX1057221-UN-22JAN14
CommandARM™

LX1057414-UN-01JUL14

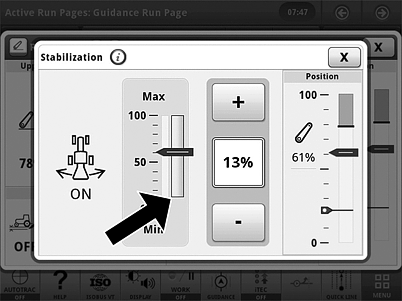

These bars operate automatically. Press button (A), and on the
screen set the height from which the stabilizer bars are to be locked.
The stabilizer bars can be locked at any desired height.
IMPORTANT: Do NOT let the draft links or lift links come into
contact with the tires or other tractor components. When draft links
are raised (even if no implement is attached), the stabilizer bars,
whether hydraulic or mechanical, must be locked.
|
|
OULXA64,0003078-19-20140630
|
|
