Rear Hitch - Use the Float Position

LX1057212-UN-09SEP13

Side Console

LX1057213-UN-22JAN14

CommandARM™

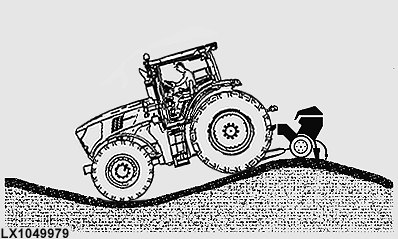

LX1049979-UN-18MAY11

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor.

For float, push depth control lever (A) all the way forward beyond the click position to the float position (detent position).
