Rear Hitch - Set the Raise Rate

IMPORTANT: Excessive raise rate may cause injury or machine damage. Fully raising implement should take at least five seconds.

1. Press rear hitch button (A).


   LX1057220-UN-22JAN14

   Side Console


   LX1057221-UN-22JAN14

   CommandARM™


   LX1056992-UN-24NOV14


   LX1057239-UN-09SEP13

   A - Rear Hitch Button

   B - Raise Rate Indicator

   C - Raise Rate

---

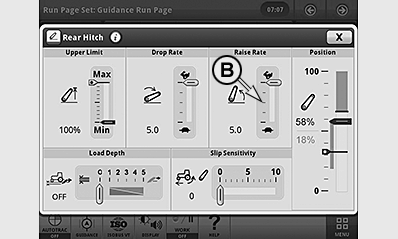

2. Select display cell for raise rate (B).

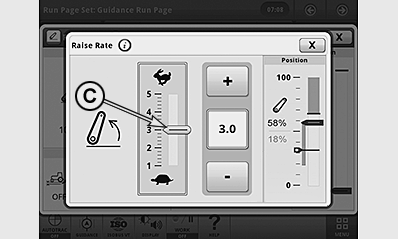

3. Use the +/— buttons to set the desired raise rate (C).

NOTE: Changes to raise rate are effective immediately.
