Rear Hitch - Use the Draft Control

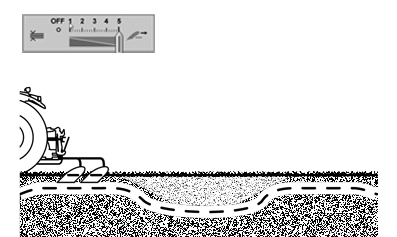

RXA0128369-UN-25SEP12

High Response Causes More Depth Variation If Soil Varies

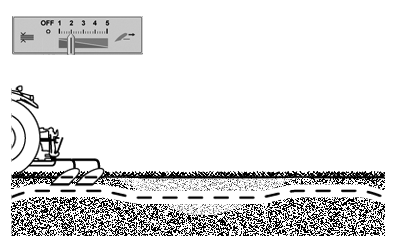

RXA0128366-UN-30APR13

Lower Response Controls Depth Better If Soil Varies

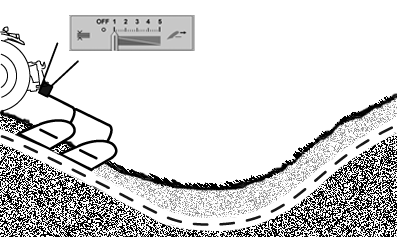

RXA0128368-UN-30APR13

Low Response Causes More Depth Variation In Rolling Terrain

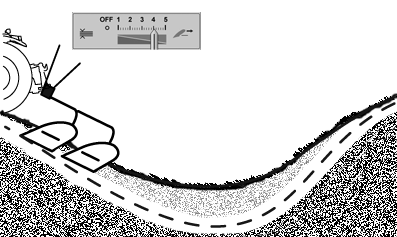

RXA0128367-UN-30APR13

Higher Response Controls Depth Better In Rolling Terrain

Use draft control to help maintain operating depth of non-floating tillage equipment in rolling terrain, or if tractor attitude/pitch and rear wheel sinkage force implement deeper than desired. If soil density/resistance varies, higher response setting causes more depth variation. Best setting depends on implement type and field conditions.

Higher values provide more/faster draft response. Lower values provide less/slower draft response.

Following are draft/depth settings by implement type:

Integral Field Cultivator	4—5
Integral Moldboard Plow	3—5
Semi-Integral Moldboard Plow	2—4
Integral Chisel Plow	2—4
Integral Ripper/Subsoiler	1—3

Adjusting draft/depth only changes draft responsiveness. Use hitch lever to control/change operating depth.

NOTE: Low draft response settings may slow drop rate of some implements. To make the implement penetrate the soil faster, hold the lever in the front click position. The hitch drops at the selected speed.
