Rear Hitch - Hitch Dampening

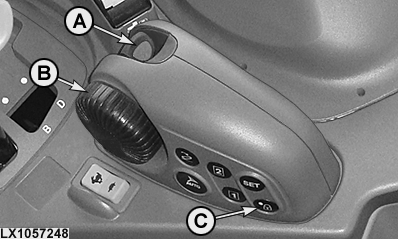

LX1057248-UN-09SEP13

Side Console

LX1057213-UN-22JAN14

CommandARM™

LX1057249-UN-23JAN14

CommandARM™

The tractor is equipped with a hitch dampening function that prevents the tractor from pitching when traveling with a raised implement.

IMPORTANT: The mass of the implement may be such that the implement moves up and down slightly even when the transport lock is on and hitch dampening is active.

Always raise the implement high enough to provide sufficient clearance between the implement and the road surface.

NOTE: The transport lock can be enabled across the entire raising height. When raised about 50 %, hitch dampening also becomes active.

NOTE: Automatic engagement of hitch dampening can be disabled in Advanced Settings. Vehicle behavior may vary depending on implement.

Hitch dampening is activated automatically if the hitch is moved to its transport position either by lever (A) or depth control knob (B), and transport lock/hitch dampening button (C) is activated.

When the transport lock/hitch dampening is active, the indicator light on button (C) lights up. Rate of drop must not be set at the minimum value.

Hitch dampening is de-activated automatically as soon as transport lock/hitch dampening (C) is switched off.

Activate or Disable Automatic Engagement of Dampening

NOTE: Automatic engagement of dampening is activated before the tractor leaves the factory. If automatic engagement of hitch dampening is disabled, vehicle behavior may vary depending on implement.

1.
   LX1057220-UN-22JAN14

   Side Console


   LX1057221-UN-22JAN14

   CommandARM™

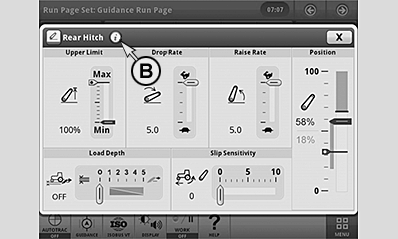

   LX1056996-UN-24NOV14

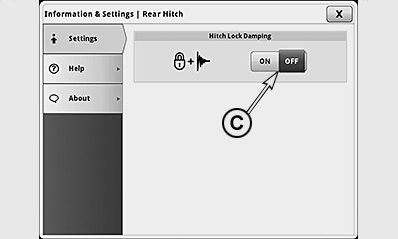

   LX1057421-UN-09JUL14

   A - Rear Hitch Button

   B - Rear Hitch Page, Advanced Settings

   C - Activate or Disable Automatic Engagement of Dampening

   Press rear hitch button (A).

---




2. Press icon for Advanced Settings (B).

3. Activate or disable automatic engagement (C) of dampening.

4. To save, close page.
