Operating PTOs

LX1057263-UN-10SEP13

Side Console

LX1057264-UN-10SEP13

LX1057265-UN-10SEP13

LX1057266-UN-10SEP13

A - Rear PTO Switch

B - Front PTO Switch¹

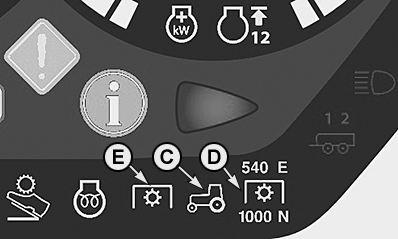

C - PTO Indicator Light

D - Rear PTO Indicator Light

E - Front PTO Indicator Light¹

F - Rear PTO Speed

G - Front PTO Speed¹

CAUTION: Always disengage the PTO when not in use.

CAUTION: High-inertia implements do not come to a standstill the moment a PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

NOTE: On tractors with PowrQuad™ Plus or AutoQuad™ Plus transmission, the electronic engine-speed matching should be turned off during PTO operation. See Settings for the relevant transmission in the Operating the Tractor section.

To switch on PTOs, press switch (A) or (B) down and then forward. The PTO starts up, and indicator lights (C) and (D) or (C) and (E) light up.

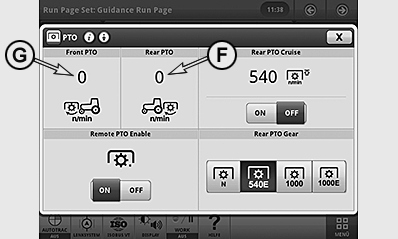

The current speeds of PTOs (F) or (G) are displayed on the PTO page in the CommandCenter™.

NOTE: The PTO speed limit can only be activated for the rear PTO. See the information on the following pages.

To switch off the PTOs, pull switch (A) or (B) back. The indicator lights go out and 0 is displayed in the PTO speed windows when the PTO stub shaft has stopped rotating.

NOTE: If the engine is shut off and then restarted while the PTO is running, the PTO will not operate.

In the case of the rear PTO, indicator lights (C) and (D) remain on.

In the case of the front PTO¹, indicator light (E) goes out but indicator light (C) remains on.

To continue working, switch off the PTO and switch it on again.

On tractors with AutoPowr™, an alarm sounds if the operator leaves the seat while the PTO is still running.
