Rear PTO — Fender Control and Function

LX1057267-UN-22JAN14

Side console

LX1057268-UN-22JAN14

CommandARM™

LX1057273-UN-10SEP13

LX1057274-UN-10SEP13

Side console

LX1057275-UN-10SEP13

CommandARM™

LX1057276-UN-10SEP13

A - PTO Page

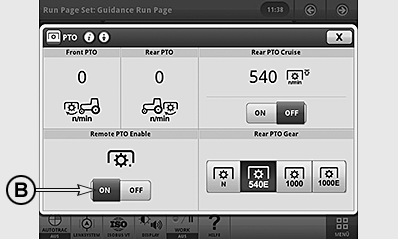

B - Fender Control, Activating

C - Rear PTO Switch

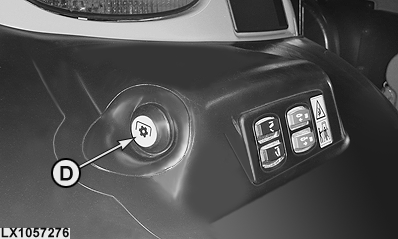

D - Fender Control Button

The rear PTO is engaged and disengaged as described above.

If the rear PTO is to be used from outside the cab, fender control must first be activated. Press button (A) and press button (B) on the PTO page. Then switch on the rear PTO at switch (C) (the PTO does not turn yet; hazard warning lights flash and there are audible warning signals). Once this has been done, the rear PTO can be switched on from outside the cab as follows:

Press button (D) on the fender; the rear PTO starts up (hazard warning lights flash and there are audible warning signals).

Releasing button (D) in less than 4 seconds causes the rear PTO to run down and come to a stop (the hazard warning lights flash and there are audible warning signals).

In order to switch the rear PTO to continuous operation, press button (D) (at least 4 seconds) until the hazard warning lights go out and there are no longer any audible warning signals.

To switch off the rear PTO, actuate button (D) (the hazard warning lights flash and there are audible warning signals) or actuate rear PTO switch (C) in the operator's cab.

NOTE: If the rear PTO is switched on in the operator's cab, button (D) may be used to switch off the rear PTO, but not to switch it on again.
