Rear Hitch - Controls

LX1057027-UN-06SEP13

Hitch - Side Console

LX1057026-UN-08JUL13

Hitch - CommandARM™

LX1057028-UN-14OCT13

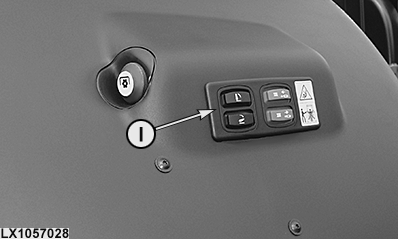

Hitch - Remote Control

A - Depth Control Lever (Raise/Lower/Float Position)

B - Control Knob, Depth Control (Raise/Lower)

C - SET Button, Saving the Selected Operating Depth

D - Button, Transport Lock/Dampening

E - Button for Moving to Saved Operating Depth, or Quick Lowering

F - Control Knob, Rate of Drop¹

G - Control Knob, Raise Height Limit¹

H - Control Knob, Load/Depth Control¹

I - Hitch, Remote Control

See “Hitch” section for more information.
