Electronic Selective Control Valves (SCV) - Controls

LX1057033-UN-22JAN14

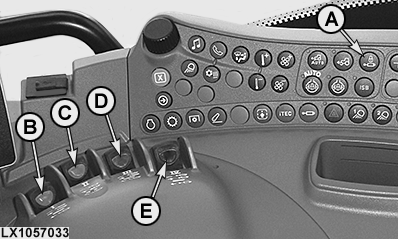

On the Side Console

LX1057032-UN-10JUL13

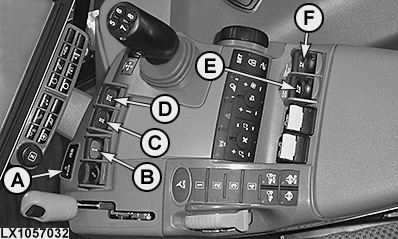

With CommandARM™

LX1057034-UN-10JUL13

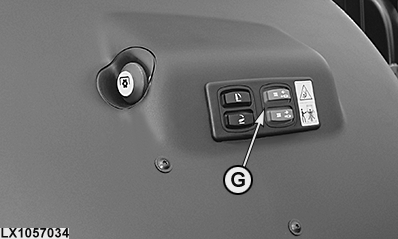

Remote Control for SCV III Only

A - Button for Blocking the Control Lever of the SCVs

B - Control Lever for Selective Control Valve, SCV I

C - Control Lever for Selective Control Valve, SCV II

D - Control Lever for Selective Control Valve, SCV III

E - Control Lever for Selective Control Valve, SCV IV

F - Control Lever for Selective Control Valve, SCV V¹

G - Remote Control for Selective Control Valve SCV III Only

For more information, see “Additional Equipment - Hydraulic System” Section.
