Differential Lock Controls

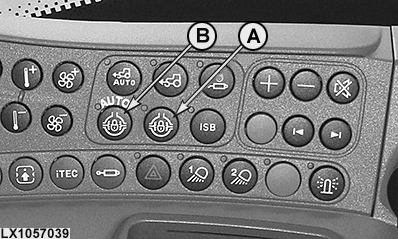

LX1057039-UN-23JAN14

Differential Lock - Side Console

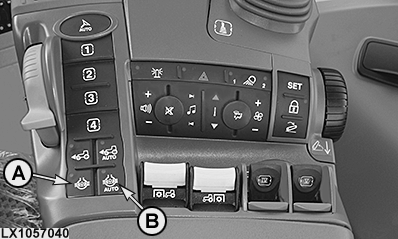

LX1057040-UN-21JAN14

Differential Lock - CommandARM™

LX1057095-UN-22JUL13

A - Button for Switching the Differential Lock On and Off Manually

B - Button for Switching the Differential Lock On and Off Automatically

C - Button for Switching the Differential Lock On Manually

For more information, see “Operating the Tractor — General” section.
