AutoTrac™ - Controls

LX1057043-UN-06SEP13

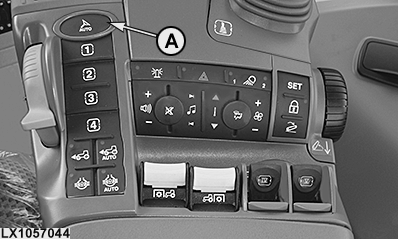

AutoTrac™ - Side Console

LX1057044-UN-22JAN14

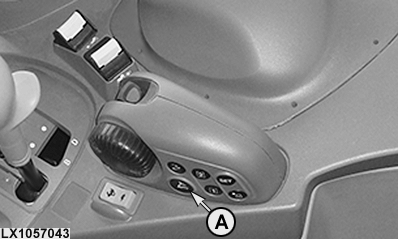

AutoTrac™ - CommandARM™

A - AutoTrac™ Resume Button

The resume button (A) activates the AutoTrac™ steering system.

NOTE: To use the AutoTrac™ steering system, the following additional equipment is required:

• StarFire™

• GreenStar™ activation

Refer to the operator's manual of the AutoTrac™ steering system for more information.
