ISOBUS Button (ISB)

LX1057049-UN-22JAN14

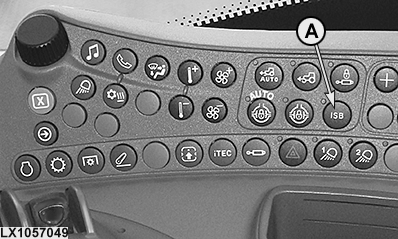

ISOBUS button (ISB) - side console

LX1057050-UN-22JAN14

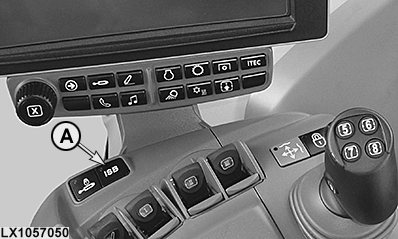

ISOBUS button (ISB) - CommandARM™

A - ISOBUS Button (ISB)

IMPORTANT: Before using ISOBUS implements, check whether the signal from the ISOBUS button can be used by the implement.

When the ISOBUS button is pressed, the signal is sent to the attached ISOBUS implement to switch into the safe state specified by the implement manufacturer. The operator's manual of the implement is decisive and specifies whether this signal should be used.
