Selective Control Valves - Disconnect Hydraulic Hoses

LX266990-UN-10OCT16

LX234752-UN-15OCT15

Locking Ring, Mechanical Multi-Function Lever

LX234753-UN-15OCT15

Lock Lever, Mechanical Selective Control Valves

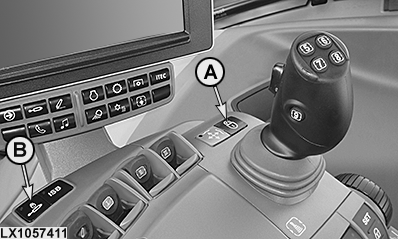

LX1057411-UN-16JUN14

CommandARM™ shown

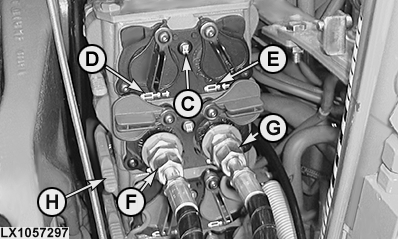

LX1057297-UN-18SEP13

A - Lock Button / Locking Ring for Multi-Function Lever

B - SCV Locking Button/Lever

C - Identification Number

D - Extend Icon

E - Retract Icon

F - Hydraulic Hose for “Extend”

G - Hydraulic Hose for “Retract”

H - Lever

CAUTION: Help prevent personal injury. Before implements are detached, hydraulic hoses are disconnected, and to avoid unintentional implement movement, observe the following:

• Lower implements to the ground.

• Set selective control valve controls to neutral position and lock them.

1. Engage park lock.

2. Lower implement to ground.

3. Move SCVs to float position for a few seconds while ignition is on or engine is running.

4. Lock out SCV controls:

   • Move the multi-function lever to neutral position and latch with the locking button or ring (A).
   • Bring the SCV control lever into the neutral position and lock with the locking button or lever (B).



5. Push lever (H) down slightly to relieve any pressure buildup of trapped oil before disconnecting hoses.

6. IMPORTANT: Forcing or jerking SCV hoses when disconnecting can damage hose ends and SCV couplers. If hoses cannot be removed easily, relieve pressure in hydraulic system by putting the SCV in float position for a few seconds with engine running. Push lever (H) down to take off the hoses.

   Pull hoses in a straight line out of connections.

7. Turn dust covers down to cover connections.
