iTEC™ - Description, Controls and Functions (with CommandARM™)

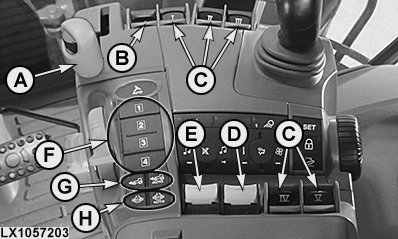

LX1057203-UN-02SEP13
CommandARM™ Controls with AutoPowr™/IVT™

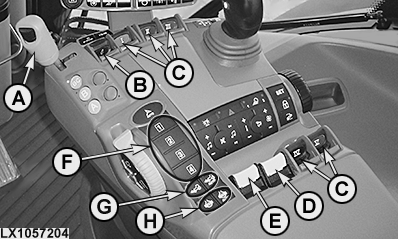

LX1057204-UN-02SEP13
CommandARM™ Controls with DirectDrive
Intelligent Total Equipment Control, iTEC™, allows multiple recurring tasks to be performed with touch of one button.One sequence, consisting of a series of functions, operations and distances can be used for example when entering a field, and a second sequence may be used at water obstacle in the middle of the field. Each sequence can have up to 20 functions. Independent of the power supply, sequences are saved until they are deleted or overwritten.
A sequence is course of events from start of first function to completion of last function that the operator can start by pressing one of the sequence buttons.
|
iTEC™ Functionality |
||
|---|---|---|
|
Component |
Function(s) |
|
|
A |
Speed Control Lever, AutoPowr™/IVT™ |
Change set speed |
|
Shift Lever, DirectDrive |
Auto Mode — Change set speed Manual Mode — Upshift or downshift in forward gear |
|
|
B |
Rear Hitch (If Equipped) |
Lift, lower and lower fast |
|
C |
SCVs (CommandARM™) |
Extend, retract, float and cancel |
|
D |
Rear PTO (If Equipped) |
On/Off |
|
E |
Front PTO (If Equipped)1 |
On/Off |
|
F |
Sequence Buttons |
1/2/3/4 |
|
G |
Front-Wheel Drive |
On/Off/Auto |
|
H |
Differential Lock |
On/Off/Auto |
iTEC™ pages are accessed through CommandCenter™.
|
1 European
version only
|
OULXA64,00030D2-19-20140321 |
