iTEC™ - Set Up A Sequence

RXA0131089-UN-26FEB13

Menu →Tractor Settings Tab → iTEC™ Icon

RXA0130056-UN-13DEC12

Manage Sequences Button → Sequences Tab → Program Button → Add Step Button

RXA0131164-UN-27FEB13

Select Function Page

RXA0131165-UN-28FEB13

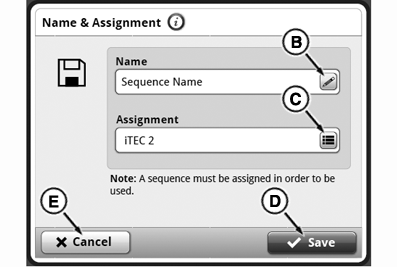

Name Sequence Page

A - Function List

B - Edit Sequence Name Button

C - Edit Sequence Assignment Button

D - Save Button

E - Cancel Button

NOTE: For complete list of functions available, see Description And Display in this section of Operators Manual.

1. Select Menu.

2. Select Tractor Settings tab

3. Select iTEC™ Icon.

4. Select Manage Sequences button.

5. Select Sequences tab.

6. Select Program button.

7. Select Add Step button.

8. Select Function page appears allowing the operator to select from list of functions (A). Select a function.

9. Select Action page appears after function has been selected. Select an appropriate action.

10. Step Distance page appears after action has been selected. Use keypad to adjust distance for the step.

11. Select OK button to complete and access next page.

12. Repeat steps 7-11 until entire sequence is set up.

13. Press next button to access next page.

14. Name Sequence page appears.

15. Select Edit Sequence Name button (B). Keyboard appears to type name of sequence. Select Save button on keyboard to save name and return to previous page.

16. Select Edit Assignment button (C). List of available assignments appears. Select assignment and press OK button on sequence assignment page.

17. Select Save button (D) to complete process.

NOTE: Operator may select Cancel button (E) to exit the editing process without saving changes.
