iTEC™ - Description, Controls and Functions (without CommandARM™)

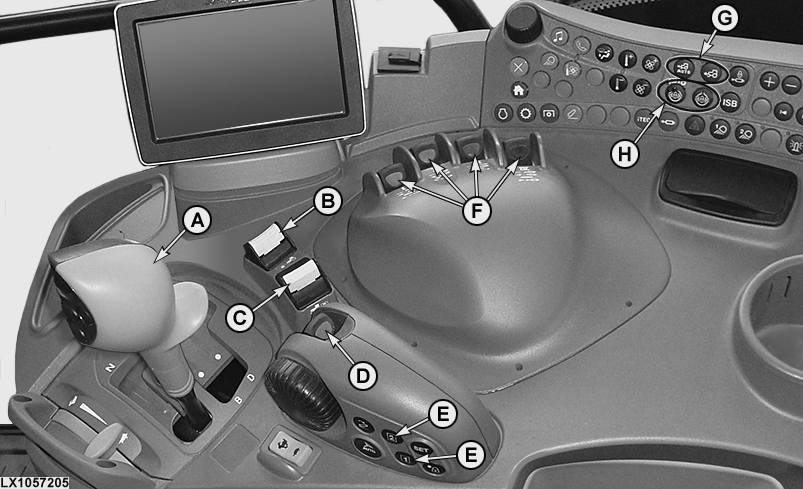

LX1057205-UN-06SEP13

One sequence, consisting of a series of functions, operations and distances can be used for example when entering a field, and a second sequence may be used at water obstacle in the middle of the field. Each sequence can have up to 20 functions. Independent of the power supply, sequences are saved until they are deleted or overwritten.

A sequence is course of events from start of first function to completion of last function that the operator can start by pressing one of the sequence buttons.

iTEC™ Functionality
	Component	Function(s)
A	Shift Lever, PowrQuad™	Shift up or down in forward gear
	Shift Lever, AutoQuad™	Shift up or down in forward gear Changing gear automatically when driving forward Selecting highest possible gear
B	Front PTO (if equipped)1	On/Off
C	Rear PTO (if equipped)	On/Off
D	Rear Hitch (if equipped)	Lift, lower, and lower fast
E	Sequence Buttons	1/2/3/4
F	SCVs	Extend, retract, float, and cancel
G	Front-Wheel Drive	On/Off/Auto
H	Differential Lock	On/Off/Auto

iTEC™ pages are accessed through CommandCenter™.
