Filling the Fuel Tank

TS202-UN-23AUG88

LX1057310-UN-16SEP13

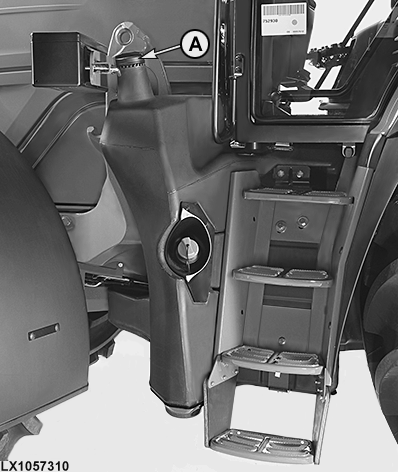

A - Fuel Tank

CAUTION: Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

IMPORTANT: To prevent damage to tractor fuel injection system and other components, never put Diesel Exhaust Fluid (DEF) into fuel tank or fuel system.

NOTE: If the fuel gauge begins to flash, then the level of the fuel is in the reserve range.

Fill tank!

NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.

Fill fuel tank (A) at the end of each day using only ultra-low sulfur fuel. This prevents condensation in tank as moist air cools.

Each time the fuel tank is filled, screw the cap back onto the filler neck.
