Fuse and Relay Box (PLB) - Version I
General Information
LX1057300-UN-23SEP13
Tractors 6175R to 6215R Shown
LX1057301-UN-23SEP13
Cover with Attaching Screws (PLB), Version I
LX1057302-UN-23SEP13
Fuse and Relay Box (PLB) - Version I
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

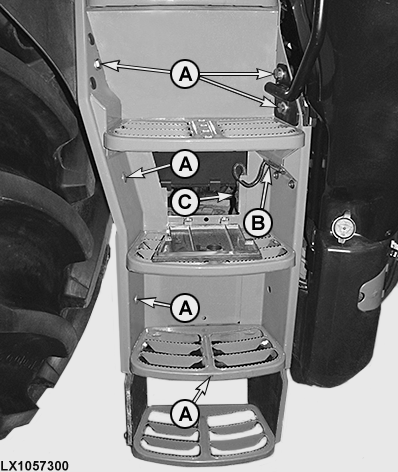

IMPORTANT: On tractors with step lighting (B), first open the cover and disconnect light connector (C) before taking off the step.
Take out the screws (A) that secure the access step, and remove the access step.
• Remove screws (D) and take off the cover of the fuse and relay box (PLB). For fuses and relays refer to overview of the “Fuse and Relay Box (PLB) - Version II” on the following pages.

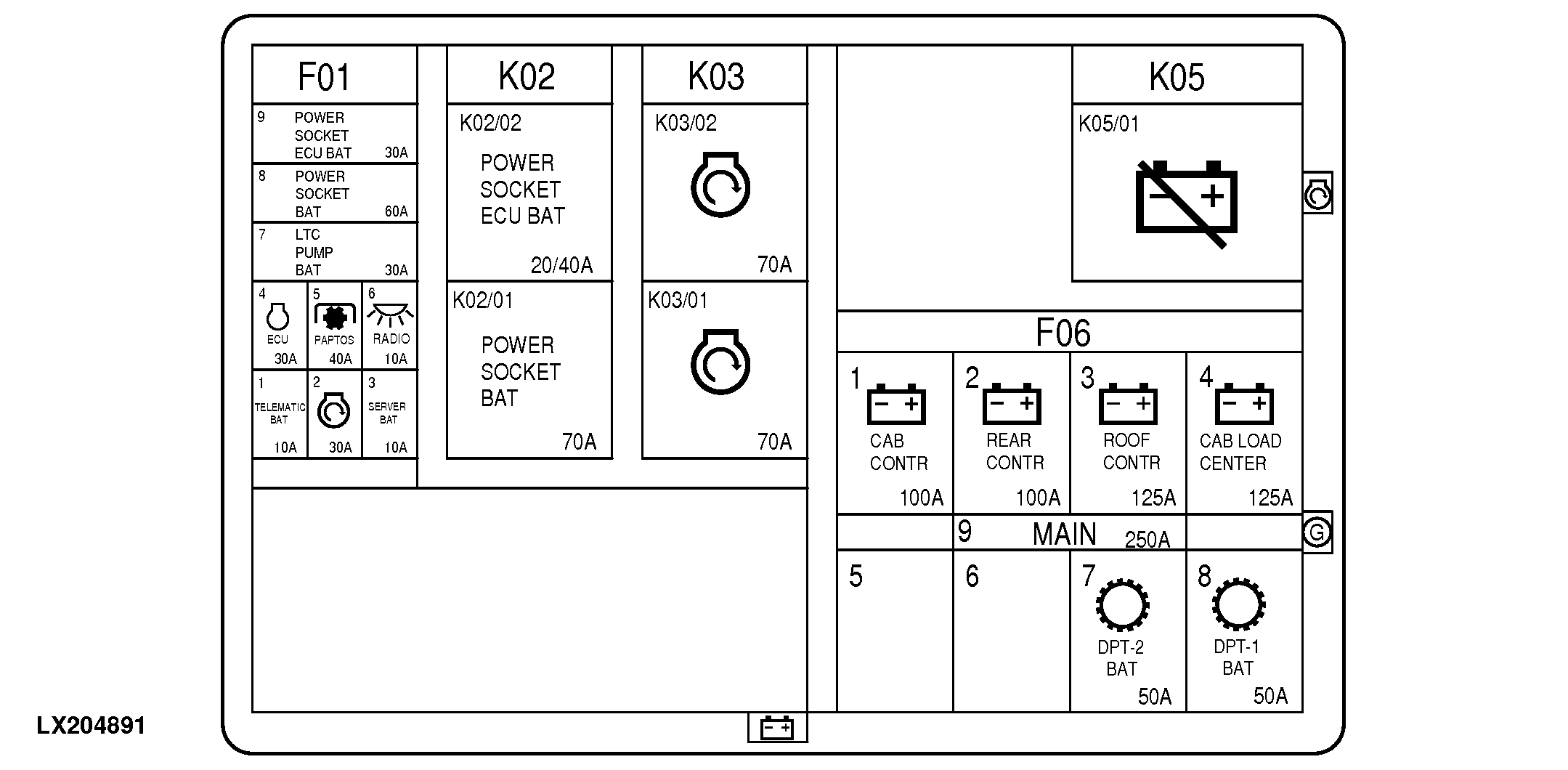

Overview of the Fuse and Relay Box (PLB) - Version I
LX204891-UN-10SEP13
Overview of the Fuse and Relay Box (PLB) - Version I
Fuses (PLB) - Version I
|
Fuse no. |
Capacity (amps) |
Consumer |
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|---|---|---|
|
F01/01_PLB |
10 A |
GreenStar, JDLink (MTG) (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
F06/01_PLB |
100 A |
Power Supply of Cab Control Unit |
|
F01/02_PLB |
30 A |
Starter (Solenoid Switch) |
F06/02_PLB |
100 A |
Power Supply of Rear Chassis Control Unit |
|
F01/03_PLB |
10 A |
Processor 4100/4600 (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
F06/03_PLB |
125 A |
Power Supply of Roof Control Unit |
|
F01/04_PLB |
30 A |
Engine Control Unit |
F06/04_PLB |
125 A |
Power supply of fuse and relay box (LCS) |
|
F01/05_PLB |
40 A |
Solenoids for PTO Speeds for Power-Assisted Rear PTO Shifting (PAPTOS) with PowrQuad™ or AutoPowr™/IVT™ Transmission |
F06/05_PLB |
— |
Not Used |
|
F01/06_PLB |
10 A |
Radio (Fuse for Battery Power Supply (Tractors with Battery Cut-Off Switch Only)) |
F06/06_PLB |
— |
Not Used |
|
F01/07_PLB |
— |
Not used (option currently not available) |
F06/07_PLB |
— 50 A |
Not Used with PowrQuad™ or AutoPowr™/IVT™ Transmission Solenoids for control unit for range shifting (DirectDrive transmission) Solenoids for PTO speeds for power-assisted PTO shifting (PAPTOS) with DirectDrive transmission |
|
F01/08_PLB |
60 A |
Implement Sockets (Power Supply to Components) |
F06/08_PLB |
— 50 A |
Not Used with PowrQuad™ or AutoPowr™/IVT™ Transmission Solenoids for control unit for gear shifting (DirectDrive transmission) |
|
F01/09_PLB |
30 A |
Implement Sockets (Power Supply to Implement Control Units) |
F06/09_PLB |
250 A |
Main Fuse (Tractors without Battery Cut-Off Switch Only) |
Relay (PLB) - Version I
|
Relay no. |
Rating (amps) |
Designation |
Relay no. |
Rating (amps) |
Designation |
|---|---|---|---|---|---|
|
K02PLB/01 |
70 amps |
Relay for Implement Sockets (Power Supply to Components) |
K03PLB/02 |
70 amps |
Starter Relay 1 |
|
K02PLB/02 |
20/40 amps |
Relay for Implement Sockets (Power Supply to Implement Control Units) |
K03PLB/01 |
70 amps |
Starter relay 2 |
|
— |
— |
— |
K05PLB/01 |
Battery Cut-Off Relay |
|
OULXA64,00030FE-19-20141216 |
