Fuses and Relays (LCS) with PowrQuad™ Transmission
General Information
LX1050130-UN-08MAR11
LX1050131-UN-16FEB11
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the footwell of the right console.
Remove fuse and relay box cover (LCS).

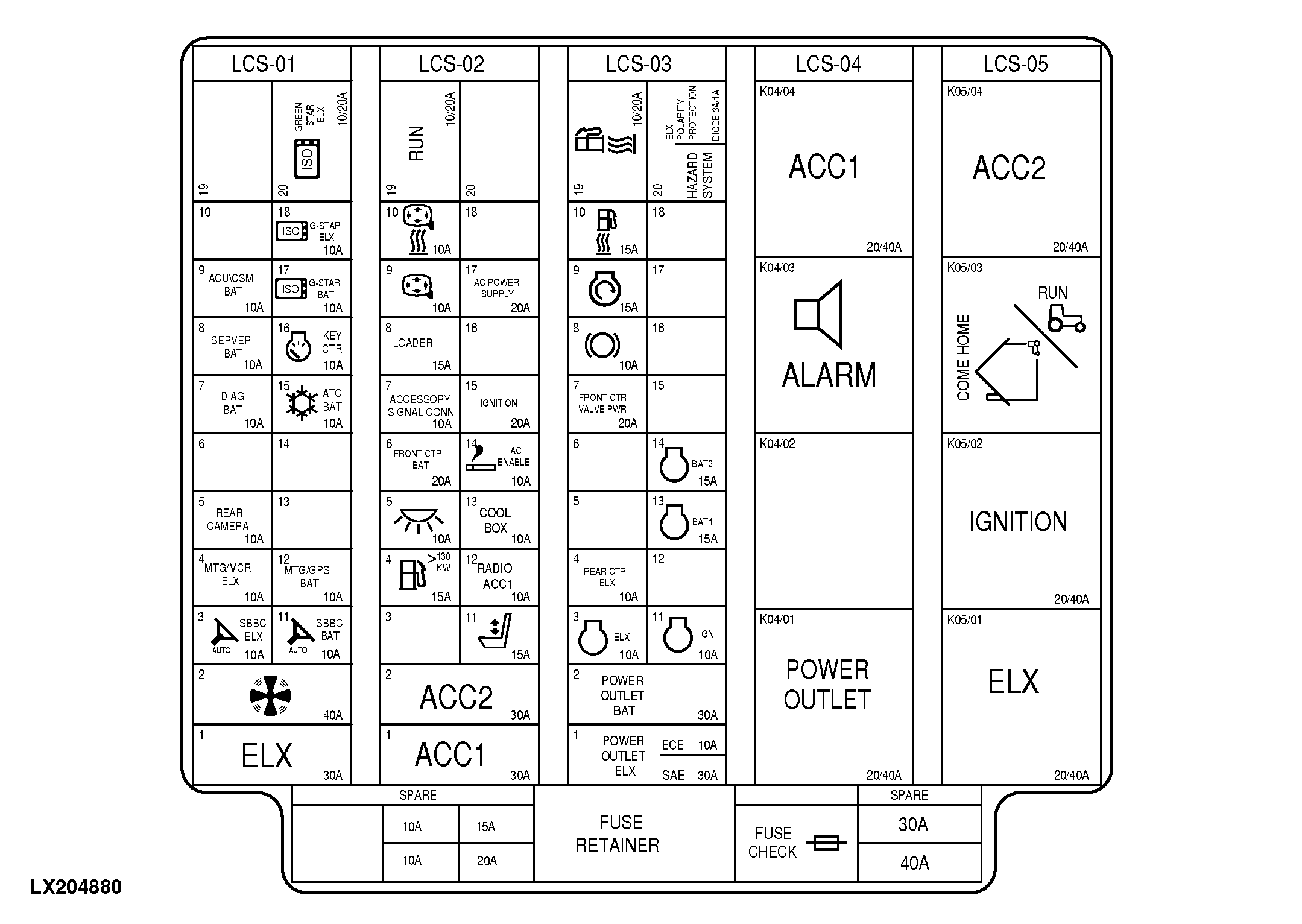

Overview of the Fuse and Relay Box (LCS)
LX204880-UN-10SEP13
LCS-01 - F01LCS - Fuses and Relays (LCS) with PowrQuad™ Transmission
LCS-02 - F02LCS - Fuses and Relays (LCS) with PowrQuad™ Transmission

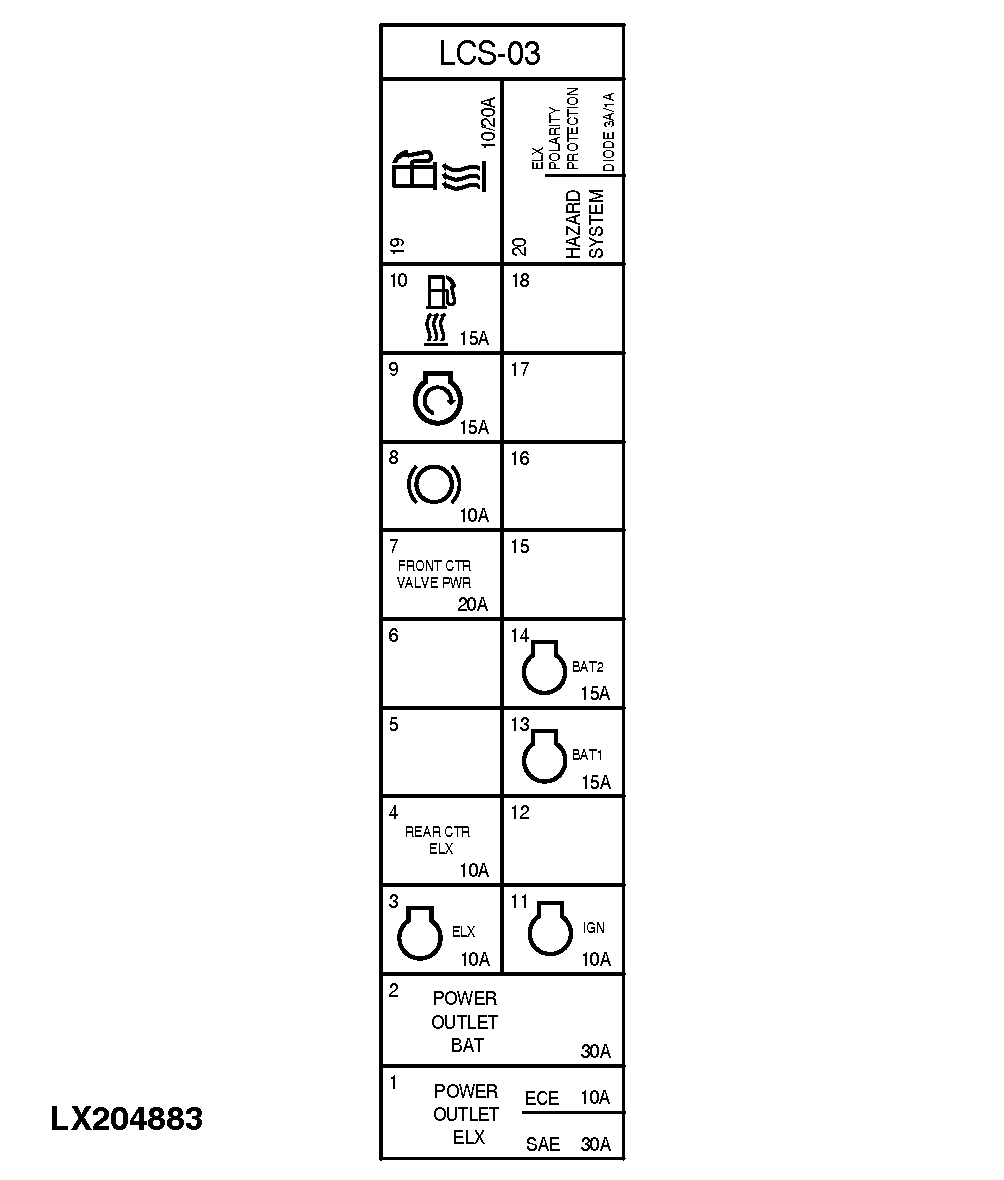

LCS-03 - F03LCS - Fuses and Relays / Diodes (LCS) with PowrQuad™ Transmission
LCS-04 - K04LCS - Relays (LCS) with PowrQuad™ Transmission
LCS-05 - K05LCS - Relays (LCS) with PowrQuad™ Transmission
FUSE CHECK - Fuse Tester
FUSE RETAINER - Bracket of Tool for Fuse Changes (Fits all Fuse Types)
SPARE - Spare Fuses
LCS-01 - Fuses and relays (LCS) with PowrQuad™ transmission
LX204881-UN-09SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01/01_LCS |
30 A |
Power Supply to Electronics (ELX) |
|
F01/02_LCS |
40 A |
Circulation Fan Motor |
|
F01/03_LCS |
10 A |
Steering Control Unit (AutoTrac™) |
|
F01/04_LCS |
10 A |
JDLink (MTG) |
|
F01/05_LCS |
10 A |
Video Cameras |
|
F01/06_LCS |
— |
Not Used |
|
F01/07_LCS |
10 A |
Service Connector (CAN Bus) |
|
F01/08_LCS |
10 A |
Processor 4100/4600 (Fuse for Battery Power Supply (Tractors without Battery Cut-Off Switch Only)) |
|
F01/09_LCS |
10 A |
Cab Switch Module Control Unit |
|
F01/10_LCS |
- |
Not Used |
|
F01/11_LCS |
10 A |
Steering Control Unit (AutoTrac™) |
|
F01/12_LCS |
10 A |
JDLink (MTG) (Fuse for Battery Power Supply (Tractors without Battery Cut-Off Switch Only)) |
|
F01/13_LCS |
— |
Not Used |
|
F01/14_LCS |
— |
Not Used |
|
F01/15_LCS |
10 A |
Control Unit for Air-Conditioning/Automatic Air-Conditioning Control |
|
F01/16_LCS |
10 A |
Instrument Unit, Immobilizer Control Unit |
|
F01/17_LCS |
10 A |
GreenStar™ (AMS) |
|
F01/18_LCS |
10 A |
GreenStar™ (AMS) |
|
Relay no. |
Rating (amps) |
Consumer |
|---|---|---|
|
K01/19_LCS |
— |
Not Used |
|
K01/20_LCS |
10/20 amps |
Relay for GreenStar™ (AMS) |
LCS-02 - Fuses and Relays (LCS) with PowrQuad™ Transmission
LX204882-UN-09SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02/01_LCS |
30 A |
Power Supply for Accessories (ACC1) |
|
F02/02_LCS |
30 A |
Power Supply for Accessories (ACC2) |
|
F02/03_LCS |
— |
Not Used |
|
F02/04_LCS |
15 A |
Fuel Pump (Engines above 177 hp / 130 KW) for 6175R to 6215R Tractors |
|
F02/05_LCS |
10 A |
Access-Step Light |
|
F02/06_LCS |
20 A |
Front Chassis Control Unit |
|
F02/07_LCS |
10 A |
Connector for Accessories (X37F-3), Signal Socket |
|
F02/08_LCS |
15 A |
Connector of Front Loader (X37F-1), Electro-Hydraulic Pick-Up Hitch (E-PUH) |
|
F02/09_LCS |
10 A |
Electrical Outside Mirrors (Adjustment) |
|
F02/10_LCS |
10 A |
Electrical Outside Mirrors (Heating) |
|
F02/11_LCS |
15 A |
Operator's Seat |
|
F02/12_LCS |
10 A |
Radio |
|
F02/13_LCS |
10 A |
Electrical Cooling Compartment |
|
F02/14_LCS |
10 A |
Cigarette Lighter, Voltage Converter 230 V / 115 V |
|
F02/15_LCS |
20 A |
Supply voltage (IGN) |
|
F02/16_LCS |
— |
Not Used |
|
F02/17_LCS |
20 A |
Voltage Converter 230 V / 115 V |
|
F02/18_LCS |
— |
Not Used |
|
Relay no. |
Rating (amps) |
Consumer |
|---|---|---|
|
K02/19_LCS |
10/20 amps |
Ignition Relay |
|
K02/20_LCS |
- |
Not used |
LCS-03 - Fuses and Relays (LCS) with PowrQuad™ Transmission
LX204883-UN-09SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03/01_LCS |
30 A 10 A |
3-Terminal Power Outlet Socket, Power Outlet Strip, 7-Terminal Power Outlet Socket (SAE) 3-Terminal Power Outlet Socket, Power Outlet Strip (ECE) |
|
F03/02_LCS |
30 A 30 A |
3-Terminal Power Outlet Socket, Power Outlet Strip (SAE) 3-Terminal Power Outlet Socket, Power Outlet Strip (ECE) |
|
F03/03_LCS |
10 A |
Engine Control Unit, Immobilizer Control Unit |
|
F03/04_LCS |
10 A |
Rear Chassis Control Unit |
|
F03/05_LCS |
— |
Not Used |
|
F03/06_LCS |
— |
Not Used |
|
F03/07_LCS |
20 A |
Power Supply of Front Chassis Control Unit (Solenoid Valves, E-SCV X - E-SCV XIII Stepper Motors) |
|
F03/08_LCS |
10 A |
Brake Pedal Sensor Unit |
|
F03/09_LCS |
15 A |
Key Switch |
|
F03/10_LCS |
15 A |
Fuel Preheater |
|
F03/11_LCS |
10 A |
Engine Control Unit |
|
F03/12_LCS |
— |
Not Used |
|
F03/13_LCS |
15 A |
Engine Control Unit |
|
F03/14_LCS |
15 A |
Engine Control Unit |
|
F03/15_LCS |
— |
Not Used |
|
F03/16_LCS |
— |
Not Used |
|
F03/17_LCS |
— |
Not Used |
|
F03/18_LCS |
— |
Not Used |
|
Relay no. |
Rating (amps) |
Consumer |
|---|---|---|
|
K03/19_LCS |
10/20 amps |
Fuel Preheater Relay |
|
K03/20_LCS |
1 amps |
Diode for power supply to electronics |
|
K03/20_LCS |
3 amps |
Diode for Hazard Warning Lights |
LCS-04 and LCS-05 - Relays with PowrQuad™ Transmission
LX204884-UN-09SEP13
LX204885-UN-09SEP13
|
Relay no. |
Rating (amps) |
Designation |
Relay no. |
Rating (amps) |
Designation |
|---|---|---|---|---|---|
|
K04/01_LCS |
20/40 amps |
Relay for 3-Terminal Power Outlet Sockets, Power Outlet Socket Strip, 7-Terminal Power Outlet Socket (SAE) Relay for 3-Pin Sockets, Power Outlet Strip (ECE) |
K05/01_LCS |
20/40 amps |
Relay for power supply to electronics (ELX) |
|
K04/02_LCS |
— |
Not Used |
K05/02_LCS |
20/40 amps |
Relay for Supply Voltage (IGN) |
|
K04/03_LCS |
— |
Acoustic Alarm |
K05/03_LCS |
— |
Connector for Come-Home Function |
|
K04/04_LCS |
20/40 amps |
Relay for Power Supply to Accessories (ACC1) |
K05/04_LCS |
20/40 amps |
Relay for Power Supply to Accessories (ACC2) |
|
