Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
General information
LX1050130-UN-08MAR11
LX1050131-UN-16FEB11
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

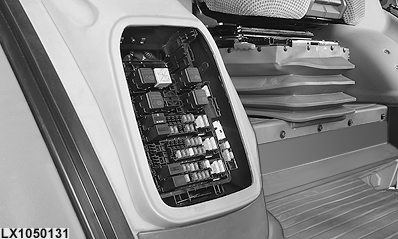

The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the footwell of the right console.

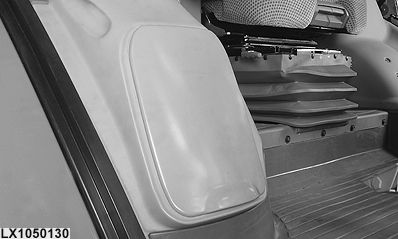

Remove fuse and relay box cover (LCS).

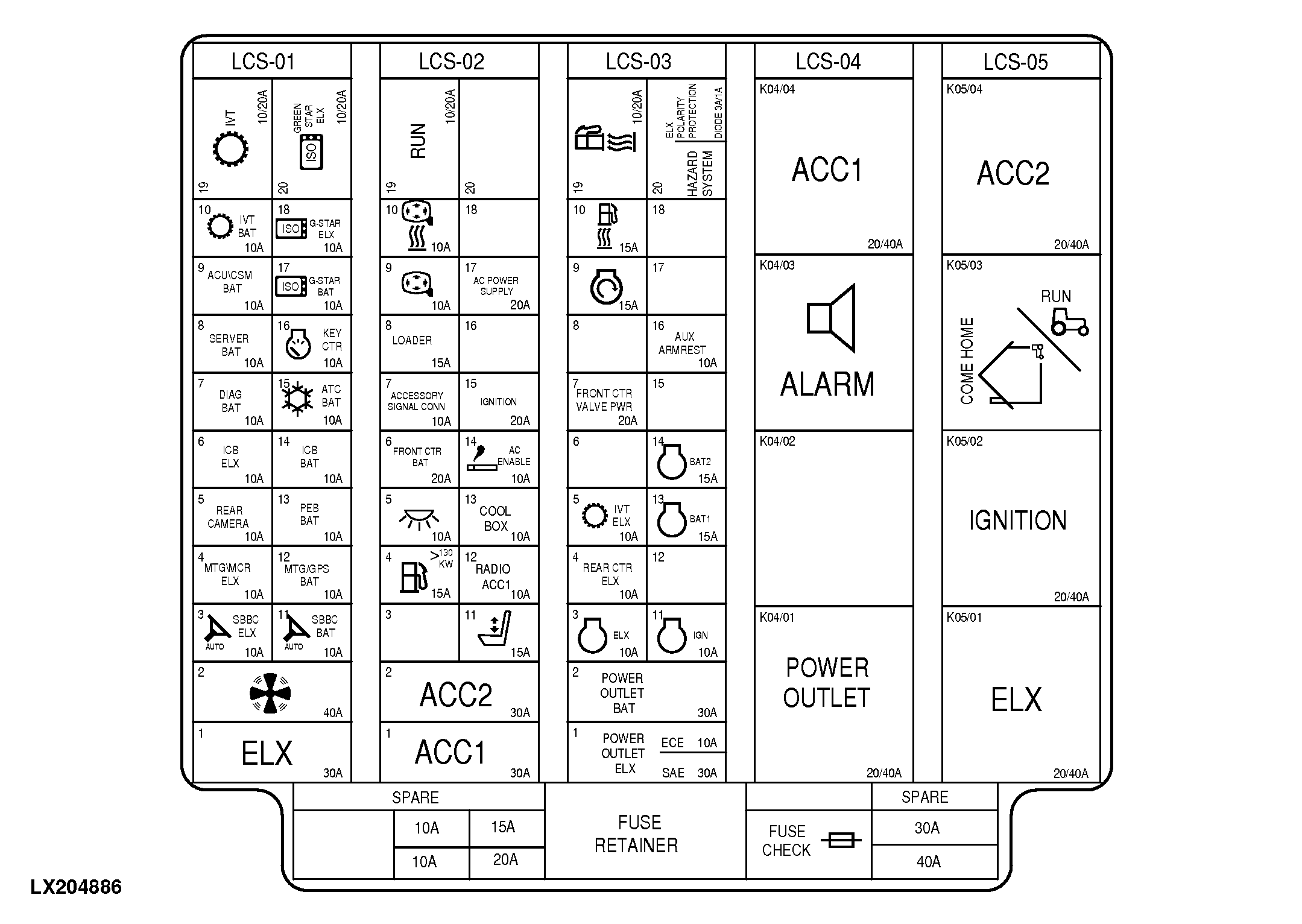

Summary of fuse and relay box (LCS)
LX204886-UN-10SEP13
LCS-01 - F01LCS - Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-02 - F02LCS - Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-03 - F03LCS - Fuses and Relays / Diodes (LCS) with AutoPowr™/IVT™ Transmission
LCS-04 - K04LCS - Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-05 - K05LCS - Relays (LCS) with AutoPowr™/IVT™ Transmission
FUSE CHECK - Fuse Tester
FUSE RETAINER - Retainer of Tool for Fuse Changes (Fits all Fuse Types)
SPARE - Spare Fuses

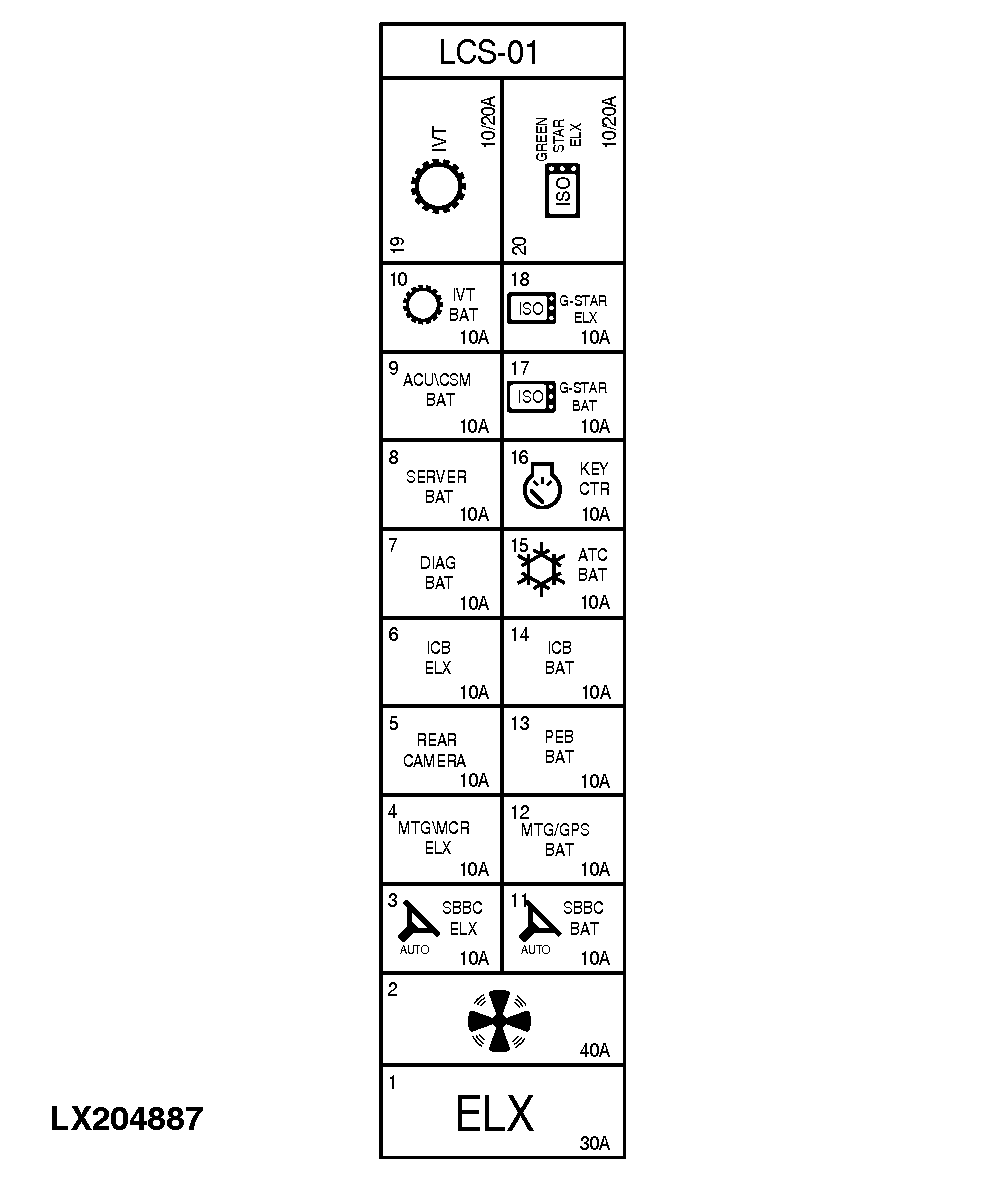

LCS-01 - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX204887-UN-10SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01/01_LCS |
30 amps |
Power Supply to Electronics (ELX) |
|
F01/02_LCS |
40 amps |
Circulation Blower Motor |
|
F01/03_LCS |
10 amps |
Steering Control Unit (AutoTrac™) |
|
F01/04_LCS |
10 amps |
JDLink (MTG) |
|
F01/05_LCS |
10 amps |
Video Cameras |
|
F01/06_LCS |
- |
Not used (option currently not available) |
|
F01/07_LCS |
10 amps |
Service Connector (CAN Bus) |
|
F01/08_LCS |
10 amps |
Processor 4100/4600 (Fuse for Battery Power Supply (Tractors without Battery Cut-Off Switch Only)) |
|
F01/09_LCS |
10 amps |
CommandARM™ Control Unit |
|
F01/10_LCS |
10 amps |
Transmission Control Unit (AutoPowr™/IVT™) |
|
F01/11_LCS |
10 amps |
Steering Control Unit (AutoTrac™) |
|
F01/12_LCS |
10 amps |
JDLink (MTG) (Fuse for Battery Power Supply (Tractors without Battery Cut-Off Switch Only)) |
|
F01/13_LCS |
— |
Not used (option currently not available) |
|
F01/14_LCS |
— |
Not used (option currently not available) |
|
F01/15_LCS |
10 amps |
Control Unit for Air-Conditioning/Automatic Air-Conditioning Control |
|
F01/16_LCS |
10 amps |
Instrument Unit, Immobilizer Control Unit |
|
F01/17_LCS |
10 amps |
GreenStar™ (AMS) |
|
F01/18_LCS |
10 amps |
GreenStar™ (AMS) |
|
Relay no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
K01/19_LCS |
10/20 amps |
Transmission Enable Relay (AutoPowr™/IVT™ Transmission) |
|
K01/20_LCS |
10/20 amps |
Relay for GreenStar™ (AMS) |

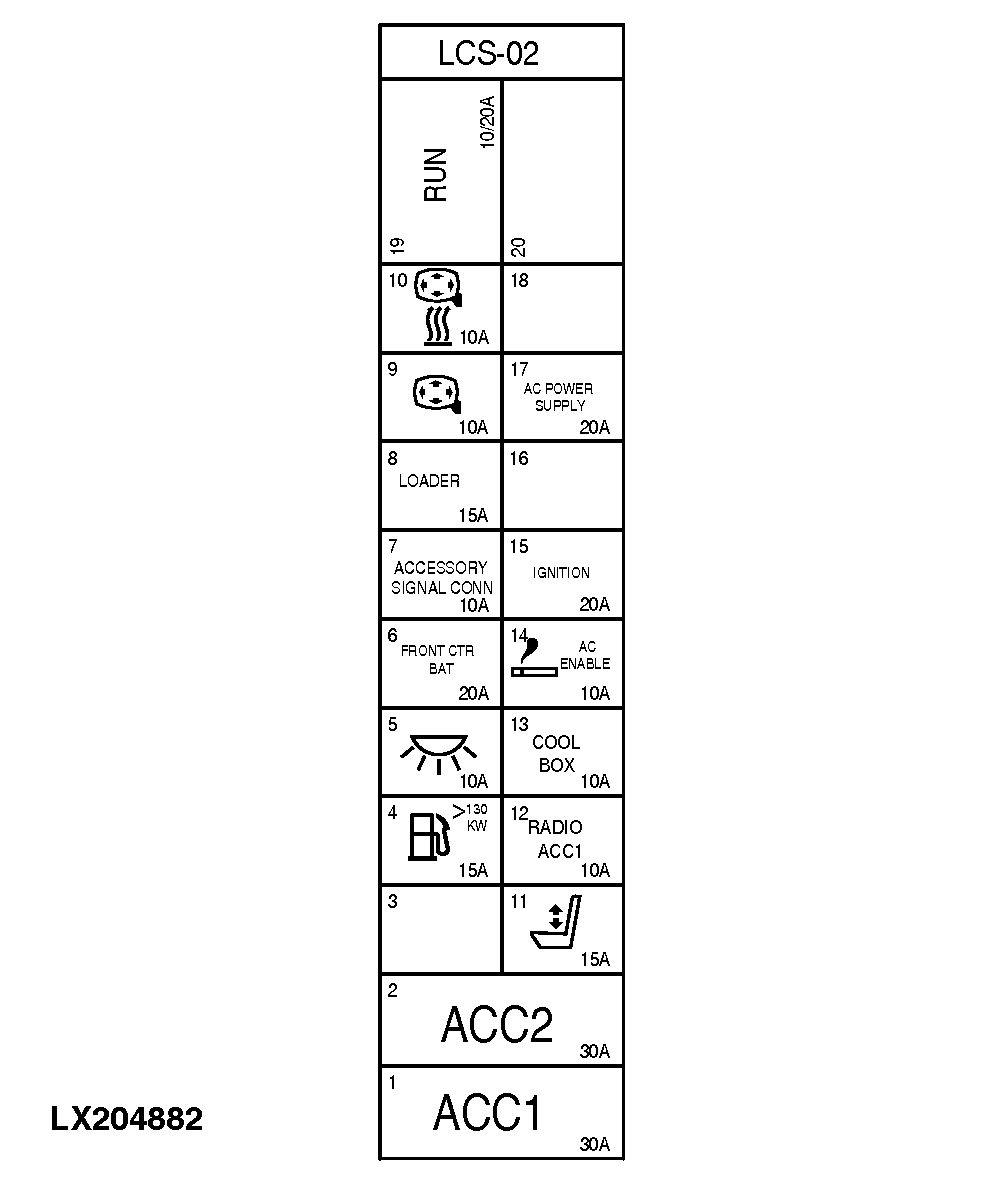

LCS-02 - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX204882-UN-09SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02/01_LCS |
30 amps |
Power Supply for Accessories (ACC1) |
|
F02/02_LCS |
30 amps |
Power Supply for Accessories (ACC2) |
|
F02/03_LCS |
— |
Not used |
|
F02/04_LCS |
15 amps |
Fuel Pump (Engines above 177 hp / 130 KW) for 6175R to 6215R Tractors |
|
F02/05_LCS |
10 amps |
Access-Step Light |
|
F02/06_LCS |
20 amps |
Front Chassis Control Unit |
|
F02/07_LCS |
10 amps |
Connector for Accessories (X37F-3), Signal Socket |
|
F02/08_LCS |
15 amps |
Connector of Front Loader (X37F-1), Electro-Hydraulic Pick-Up Hitch (E-PUH) |
|
F02/09_LCS |
10 amps |
Electrical Outside Mirrors (Adjustment) |
|
F02/10_LCS |
10 amps |
Electrical Outside Mirrors (Heating) |
|
F02/11_LCS |
15 amps |
Operator's Seat |
|
F02/12_LCS |
10 amps |
Radio |
|
F02/13_LCS |
10 amps |
Electrical Cooling Compartment |
|
F02/14_LCS |
10 amps |
Cigarette Lighter, Voltage Converter 230 V / 115 V |
|
F02/15_LCS |
20 amps |
Supply Voltage (IGN) |
|
F02/16_LCS |
— |
Not used |
|
F02/17_LCS |
20 amps |
Voltage Converter 230 V / 115 V |
|
F02/18_LCS |
— |
Not used |
|
Relay no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
K02/19_LCS |
10/20 amps |
Ignition Relay |
|
K02/20_LCS |
- |
Not used |

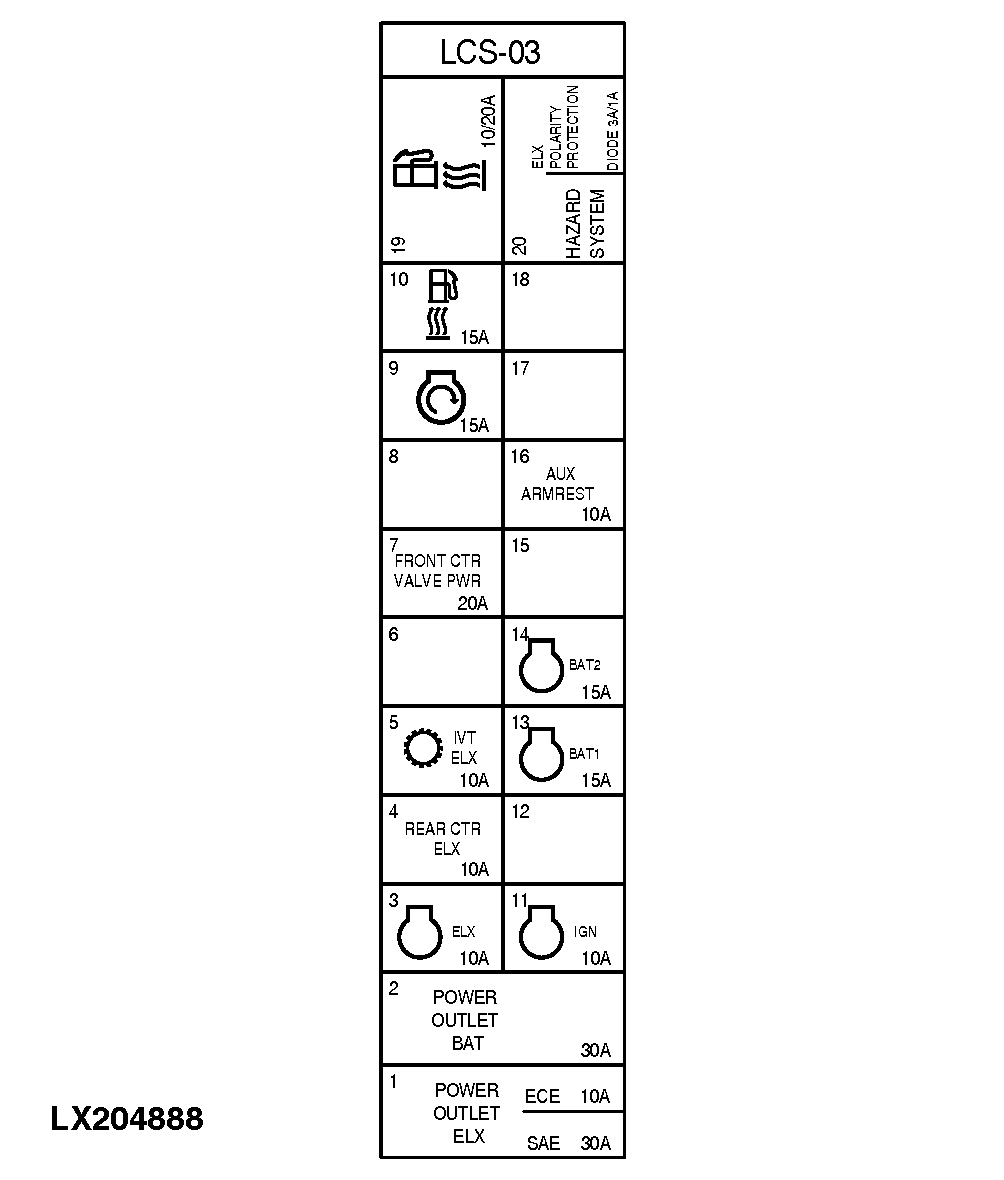

F03LCS - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX204888-UN-10SEP13
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03/01_LCS |
30 amps 10 amps |
3-Terminal Power Outlet Socket, Power Outlet Strip, 7-Terminal Power Outlet Socket (SAE) 3-Terminal Power Outlet Socket, Power Outlet Strip (ECE) |
|
F03/02_LCS |
30 amps 30 amps |
3-Terminal Power Outlet Socket, Power Outlet Strip (SAE) 3-Terminal Power Outlet Socket, Power Outlet Strip (ECE) |
|
F03/03_LCS |
10 amps |
Engine Control Unit, Immobilizer Control Unit |
|
F03/04_LCS |
10 amps |
Rear Chassis Control Unit |
|
F03/05_LCS |
10 amps |
Transmission Control Unit (AutoPowr™/IVT™) |
|
F03/06_LCS |
— |
Not used |
|
F03/07_LCS |
20 amps |
Power Supply of Front Chassis Control Unit (Solenoid Valves, E-SCV X - E-SCV XIII Stepper Motors) |
|
F03/08_LCS |
— |
Not used |
|
F03/09_LCS |
15 amps |
Ignition Switch |
|
F03/10_LCS |
15 amps |
Fuel Preheater |
|
F03/11_LCS |
10 amps |
Engine Control Unit |
|
F03/12_LCS |
— |
Not used |
|
F03/13_LCS |
15 amps |
Engine Control Unit |
|
F03/14_LCS |
15 amps |
Engine Control Unit |
|
F03/15_LCS |
— |
Not used |
|
F03/16_LCS |
10 amps |
2-Pin Socket in CommandARM™ |
|
F03/17_LCS |
— |
Not used |
|
F03/18_LCS |
— |
Not used |
|
Relay no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
K03/19_LCS |
10/20 amps |
Fuel Preheater Relay |
|
K03/20_LCS |
1 amp |
Diode for Power Supply for Electronics |
|
K03/20_LCS |
3 amps |
Diode for Hazard Warning Lights |

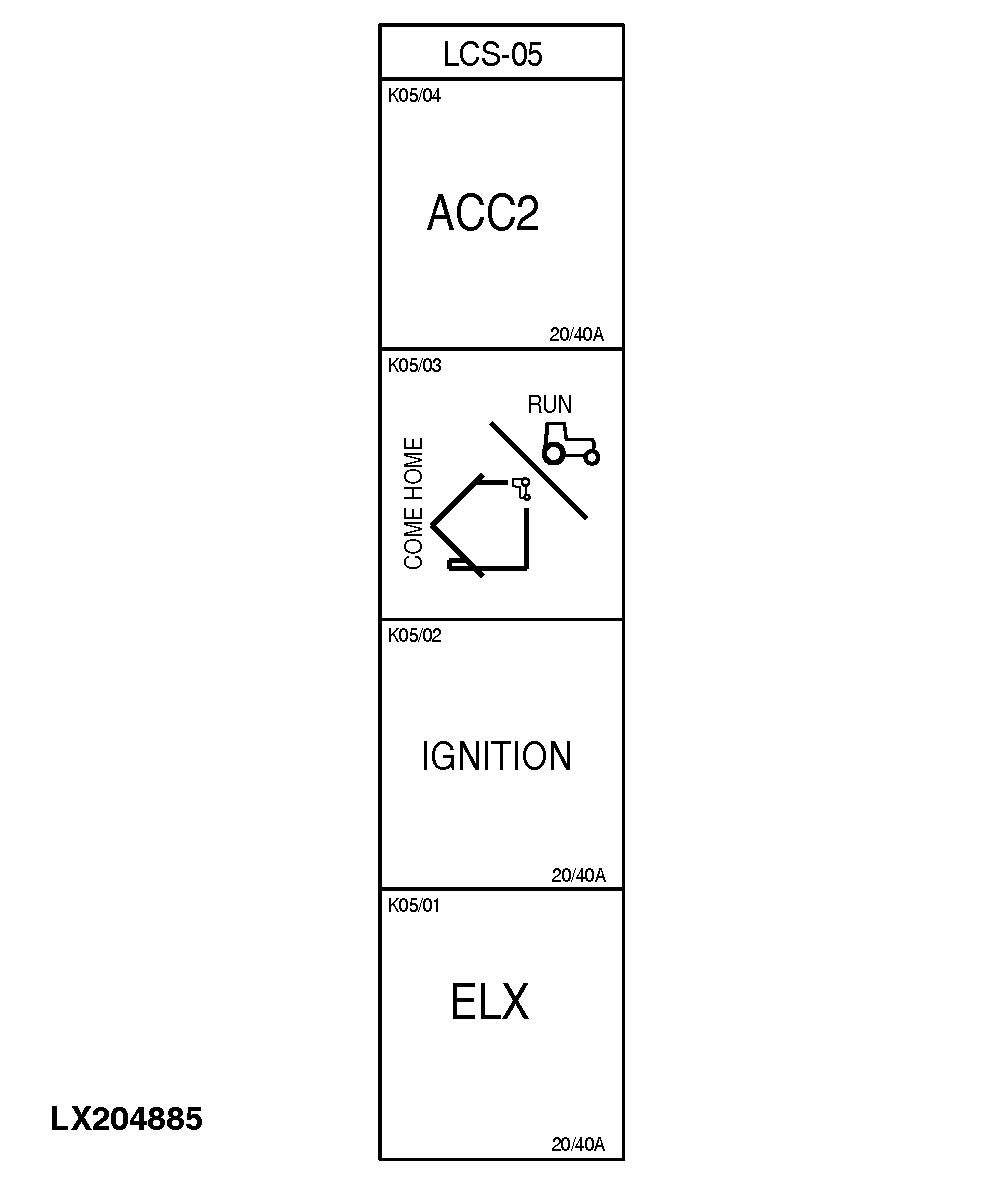

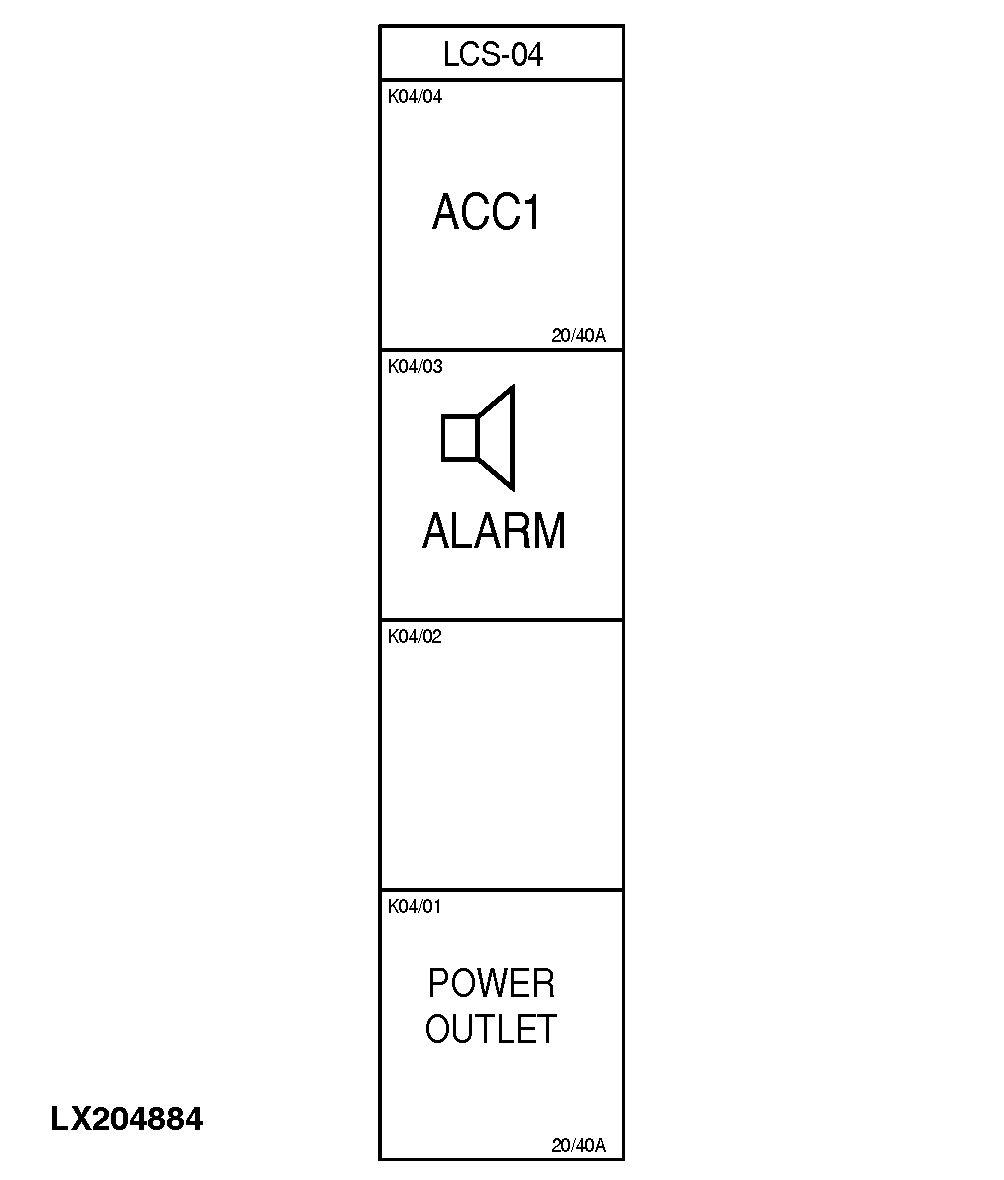

LCS-04 and LCS-05 - Relays with AutoPowr™/IVT™ transmission
LX204884-UN-09SEP13
LX204885-UN-09SEP13
|
Relay no. |
Capacity (amps) |
Designation |
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|---|---|---|
|
K04/01_LCS |
20/40 amps |
Relay for 3-Terminal Power Outlet Sockets, Power Outlet Socket Strip, 7-Terminal Power Outlet Socket (SAE) Relay for 3-Pin Sockets, Power Outlet Strip (ECE) |
K05/01_LCS |
20/40 amps |
Relay for Power Supply to Electronics (ELX) |
|
K04/02_LCS |
— |
Not used |
K05/02_LCS |
20/40 amps |
Relay for Supply Voltage (IGN) |
|
K04/03_LCS |
— |
Acoustic Alarm |
K05/03_LCS |
— |
Connector for Come-Home Function |
|
K04/04_LCS |
20/40 amps |
Relay for Power Supply to Accessories (ACC1) |
K05/04_LCS |
20/40 amps |
Relay for Power Supply to Accessories (ACC2) |
|
OULXA64,0003101-19-20140822 |
