Selective Control Valves, Electronic - Setting Independent Mode

RXA0128092-UN-10SEP12

“Menu Button” → “Tractor Settings” Tab → “SCV”

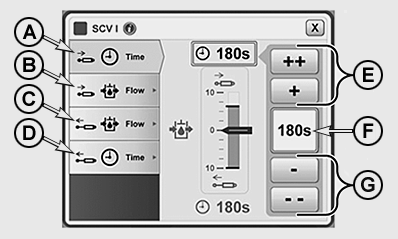

LX1057322-UN-14OCT13

Independent SCV Settings Page

A - Time, Retract Tab

B - Flow, Retract Tab

C - Flow, Extend Tab

D - Time, Extend Tab

E - “Increase Time/Flow” Button

F - Input Box

G - “Decrease Time/Flow” Button

NOTE: Moving the SCV lever to its click position activates the selected function in relation to the valve's preset flow rate and flow time.

1. Select “Menu Button”.

2. Select “Tractor Settings” tab.

3. Select “SCV”.

4. Select Independent SCV module.

5. Select Flow, Retract tab (B) or Flow, Extend tab (C).

   NOTE: At input box (F), flow rate is displayed in increments of 0.04 from 0.04 to 10.

6. To adjust desire flow rate, press increase button (E) or decrease button (G).

7. Select Time, Extend tab (A) or Time, Retract tab (D).

   NOTE: Flow time is displayed under the “Time” tab in the following increments:

   • from 0 to 10 seconds in increments of 1 second
   • from 10 to 20 seconds in increments of 2 seconds
   • above that as 25, 30, 40, 50, 60, 90, 120 and 180 seconds
   • or “C” for “Continuous” (continuous)



8. Press increase button (E) or decrease button (G) to set desired flow rate.
