Selective Control Valves, Electronic - Activating/De-activating Independent mode

RXA0128092
RXA0128092-UN-10SEP12

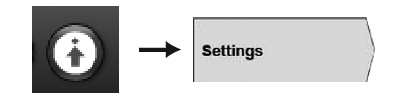

“Menu Button” → “Tractor Settings” Tab → “SCV”

RXA0130326
RXA0130326-UN-11JAN13

Advanced Settings Icon

RXA0128422
RXA0128422-UN-22AUG13

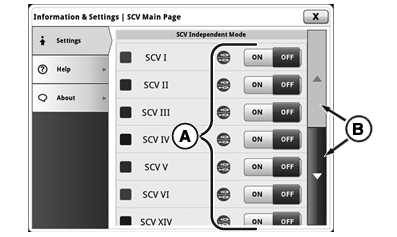

Information and Settings Page

A - SCV ON/OFF Toggles

B - Scroll Bar

  1. Select “Menu Button”.
  2. Select “Tractor Settings” tab.
  3. Select “SCV”.
  4. Select “Advanced Settings” icon.
  5. Select “Settings” tab.

Use toggles (A) to switch individual SCV(s) ON or OFF into Independent Mode.

OULXA64,000310A-19-20141201
