Fuse and Relay Box (CFH) - only with (PLB) - Version I

General Information

LX1057300-UN-23SEP13

Tractors 6175R to 6215R Shown

LX1057303-UN-23SEP13

LX1057304-UN-23SEP13

NOTE: Only with tractors with “Fuse and Relay Box (PLB) - Version I”.

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

The fuses and relays of the Comfort Front Hitch (CFH) circuit are located behind the right access step.

IMPORTANT: On tractors with step lighting (B), first open the cover and disconnect light connector (C) before taking off the step.

Take out the screws (A) that secure the access step, and remove the access step.

Remove cover (D) from fuse and relay box (CFH).

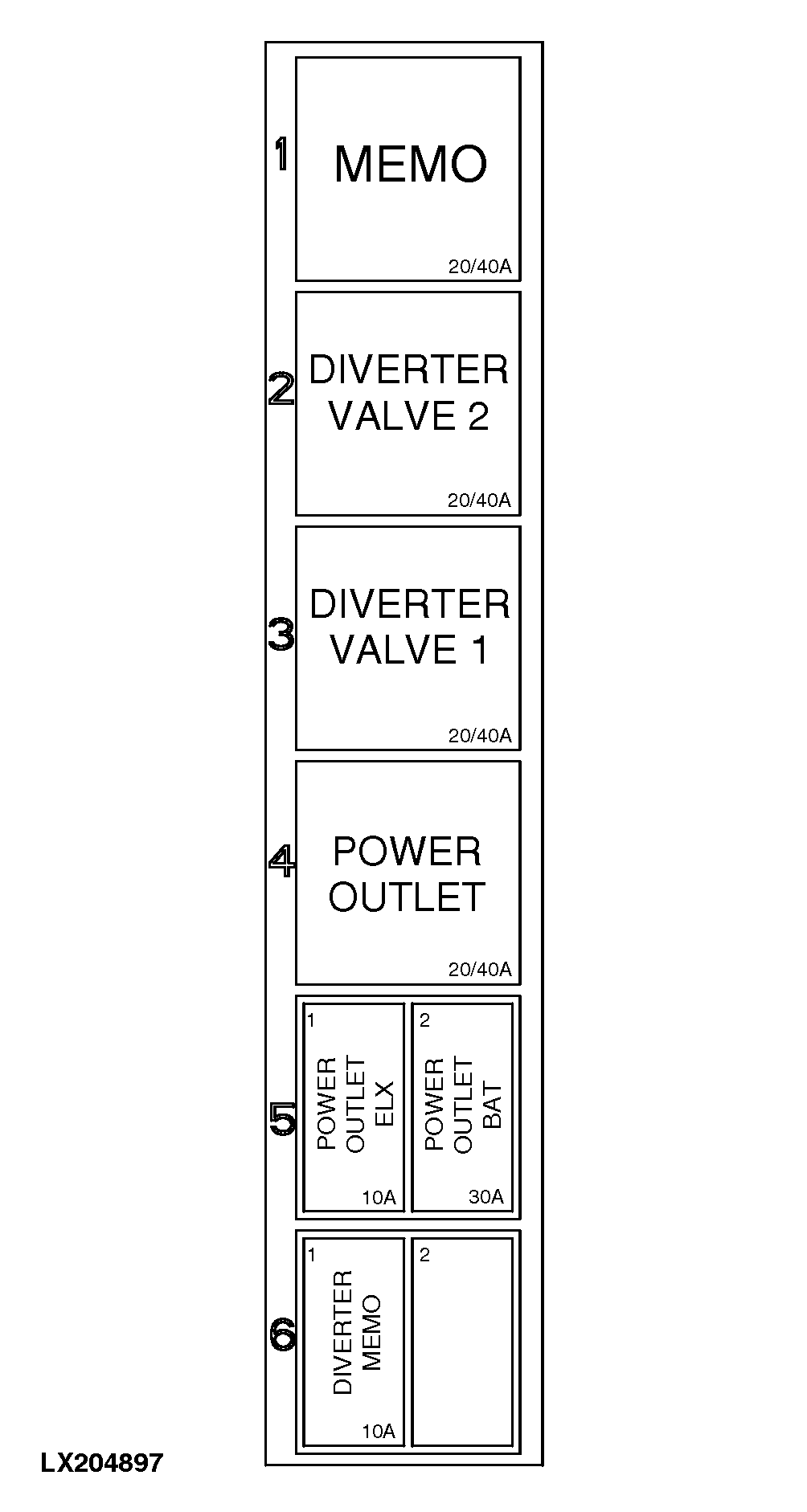

Overview of the Fuse and Relay Box (CFH) - only with (PLB), Version I

LX204897-UN-10SEP13

Relay (CFH) - only with (PLB), Version I

Relay no.	Rating (amps)	Consumer
K01_CFH	20/40 amps	Relay for Memo Valve (Front Loader)
K02_CFH	20/40 amps	Relay for Control Valve 2 (Front Loader)
K03_CFH	20/40 amps	Relay for Control Valve 1 (Front Loader)
K04_CFH	20/40 amps	Relay for 3-Terminal Power Outlet Socket (Front Hitch)

Fuses (CFH) - only with (PLB), Version I

Fuse no.	Capacity (amps)	Consumer
F05/01_CFH	10 A	3-Terminal Power Outlet Socket (Front Hitch)
F05/02_CFH	30 A	3-Terminal Power Outlet Socket (Front Hitch)
F06/01_CFH	10 A	Relay for Front Loader
F06/02_CFH	—	Not used
