AutoPowr™/IVT™ — Using Individual Brake Pedals

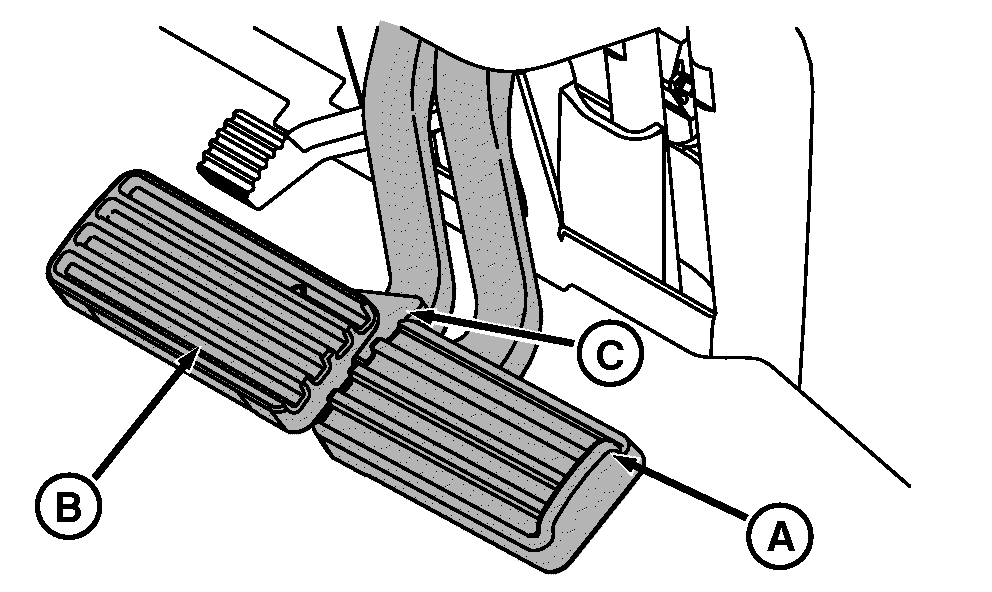

RXA0122335
RXA0122335-UN-17NOV11

A - Right Brake Pedal

B - Left Brake Pedal

C - Pedal Lock Tab

Individual brake pedals (A) and (B) can assist with slow speed off-road turning, such as hooking up to implements. At low idle, AutoClutch feature stops tractor if operator depresses only one brake pedal. IT IS NOT NECESSARY TO DEPRESS CLUTCH PEDAL.

IMPORTANT: When AutoClutch is switched off1, the clutch pedal needs to be pressed to stop the tractor.

To assist in hooking up implement, depress either brake pedal while slowly increasing engine speed until desired turn is achieved. Returning engine speed to low idle while continuing to depress one brake pedal slows tractor to stop.

CAUTION: Avoid personal injury. Braking tractor while commanding high engine speed requires higher brake pedal force.

Avoid injury due to sudden or unexpected acceleration. When brake pedals are released, tractor automatically accelerates to speed currently commanded by throttle and speed control levers.

1 if function present
