AutoPowr™/IVT™ — Accelerator Pedal Mode

LX1053367
LX1053367-UN-25JAN12

Accelerator Pedal

LX1057422
LX1057422-UN-22JUL14

Hand Throttle

LX1057317
LX1057317-UN-24SEP13

Speed Wheel

LX1053378
LX1053378-UN-08FEB12

Indicator Light

LX1057318
LX1057318-UN-24SEP13

A - Accelerator Pedal

B - Hand Throttle

C - Speed Wheel

D - Indicator Light

E - PEDAL Operating Mode (Accelerator Pedal Mode)

F - Button for Save Engine Speed

Accelerator pedal mode is a function that allows the operator to control wheel speed independently of engine speed by using accelerator pedal (A). At the same time, the operator uses hand throttle (B) to keep the engine at a constant speed.

When the accelerator pedal is released, the vehicle is slowed down to a safe creeper speed of 0.6 km/h. To come to a complete stop, brake pedal with auto clutch function must be used.

To cover transport applications with accelerator pedal (A) only, the operator can leave hand throttle (B) in its lowest position; engine speed is increased or decreased from the drive strategy based on fuel economy settings. When hand throttle (B) is not at its lowest position, engine speed is controlled directly by hand throttle (B) while accelerator pedal (A) controls wheel speed only.

IMPORTANT: FieldCruise™ is not available in accelerator pedal mode. If the button (F) is pressed, the set engine speed is approached promptly regardless of the hand throttle position.

This means that the vehicle might not reach the wheel speed commanded by speed wheel (C), if the operator is holding the engine speed at low rpm via the hand throttle.

Accelerator Pedal Mode is intended for applications where it is important to keep the engine speed at a constant rpm independent from wheel speed (mowing for example).

NOTE: When accelerator pedal mode (E) is active, indicator light (D) comes on; when the accelerator pedal mode is disabled, light (D) goes out.

Activate the accelerator pedal mode

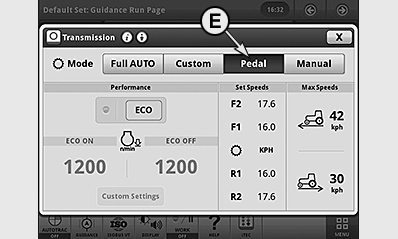

Before accelerator pedal mode can be activated, the reverse drive lever must be in park. To do this, press the transmission button to access the transmission page. On the transmission page, press PEDAL button (E) to activate the accelerator pedal mode.

To de-activate the accelerator pedal mode, move the reverse drive lever to park and activate a different mode on the transmission page.
