AutoPowr™/IVT™ — Stopping and Parking the Tractor

RXA0068273-UN-27AUG03

RXA0089425-UN-09JUN06

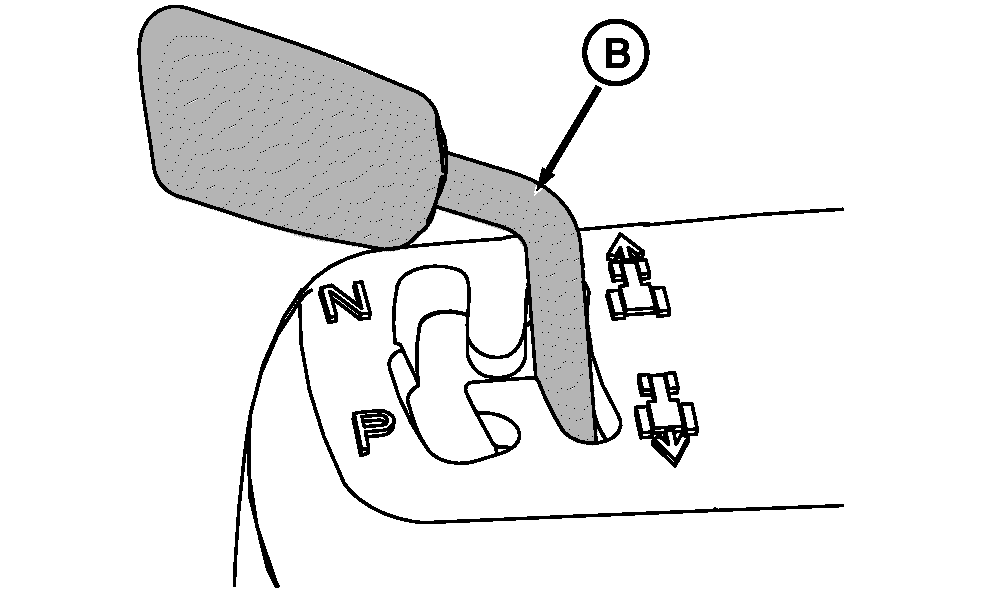

Reverse Drive Lever Shown In Power Zero

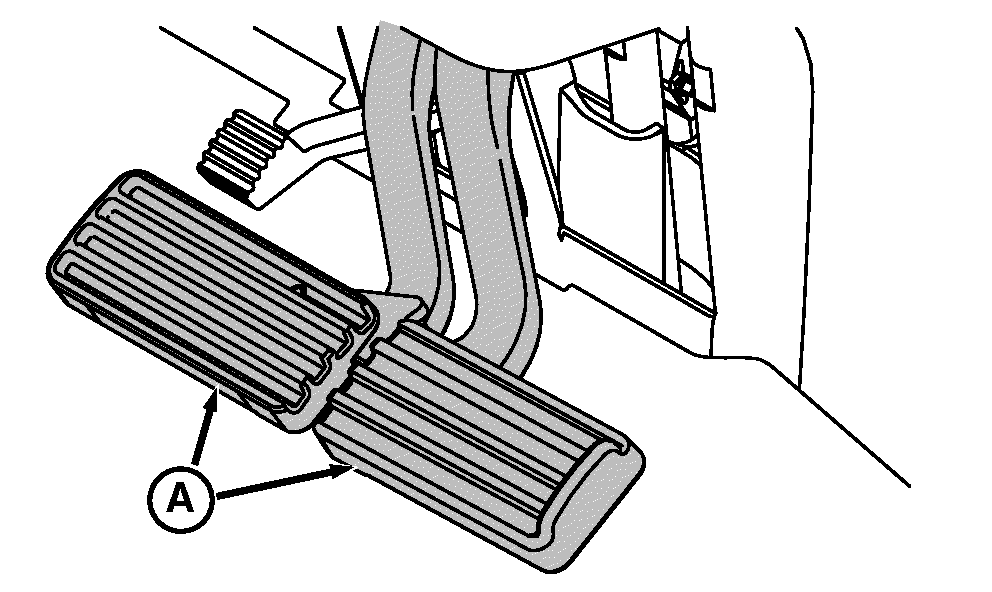

A - Brake Pedals

B - Power Zero Position

CAUTION: Avoid injury from losing control of tractor. Couple brake pedals (A) together when driving on roads.

1. Reduce throttle to low engine rpm.

2. Press both brake pedals. It is not necessary to depress clutch. Brakes activate AutoClutch (automatic clutch function within transmission) to stop tractor.

3. Move speed control lever to slowest position.

4. Shift reverse drive lever to park position.

5. Lower implements and shut off PTO.

6. Shut engine off and remove key.

Stopping the tractor using AutoClutch

Press both brake pedals. It is not necessary to depress clutch, reduce throttle, or move speed control lever. Brakes will activate AutoClutch. When brakes are released, tractor accelerates to currently commanded speed.

CAUTION: Prevent injury; Braking tractor while commanding a high engine speed will require higher brake pedal force.

Avoid injury due to sudden or unexpected acceleration. When brake pedals are released, tractor will automatically accelerate to speed currently commanded by throttle and speed control lever.

Using Power Zero Position

Hold reverse drive lever in Power Zero position (B) to temporarily hold tractor stationary.

NOTE: Depending on speed and load, Power Zero may not bring tractor to a stop if already in motion.

Using NEUTRAL Position

Transmission NEUTRAL position is obtained (with engine running) by shifting the reverse drive lever to NEUTRAL position. Tractor will roll freely in NEUTRAL position.

Using PARK Position

CAUTION: Before leaving the tractor, always move reverse drive lever (B) to park position.

Transmission PARK position holds tractor stationary.
