Navigate Generation 4 CommandCenter™

NOTE: Images are reference and may differ by tractor configuration or operator settings. As operator pages through CommandCenter™, more in- depth information is presented, allowing operator to fine tune tractor functions.

RXA0130496-UN-09APR13

CommandCenter™ and CommandARM™

RXA0134342-UN-01AUG13

Run Page

RXA0126052-UN-23APR13

Module Functions

Navigate in the CommandCenter™ pages

Use Touchscreen CommandCenter™ buttons or icons to make selections. For input boxes use either key pad, or select input box and scroll adjustment dial (C) to desired value. A yellow highlight box appears around the selected input box and indicates that the adjusting dial is active.

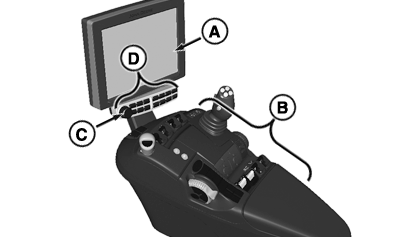

A—CommandCenter™ is attached to the CommandARM™ (B) and allows the operator to display selected pages that are necessary for operating the tractor. The touchscreen allows the operator to touch options on screen to move through pages and access tractor functions.

B—CommandARM™ consists of buttons, a multi-function lever (if equipped), switches, and shortcut buttons with which the operator can manage tractor and implement functions.

C—Adjusting Dial/Close Button allows the operator to change values in input boxes. Rotating adjustment dial clockwise raises input box values. Rotating adjustment dial counterclockwise lowers input box values. Push button one time to close window. Push and hold to close all open windows.

D—Shortcut Keys allow the operator to access specific functions without going through CommandCenter™ menu.

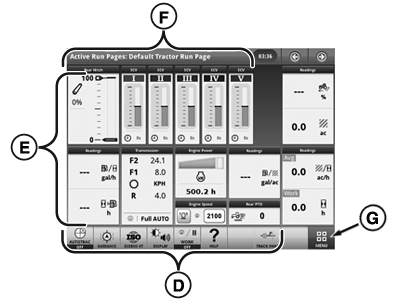

E—Modules of the run pages are areas in which functions can be called up quickly.

F—Title bar can be selected on any run page to change the run page in the drop-down slat.

G––Menu lists all applications installed on display and machine. Select left-hand tabs to view different groups of applications.

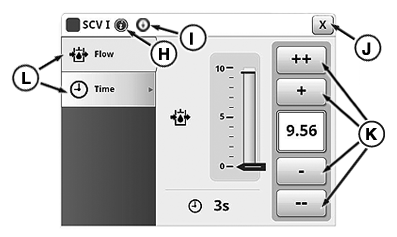

H––Help Button is accessed by pressing title bar to view help for page when available.

I––Advanced Settings Button is accessed by pressing title bar to edit additional settings when available.

J––Close Button is pressed to close current page.

K––Increase/Decrease Value Buttons are used to change value within input boxes. Use ++ and - - buttons to make larger incremental changes when adjusting value, rather than touching + or - buttons. For areas that require tighter adjustments, only + and - buttons are available.

L––Tabs allow operator to change to different section topic.
